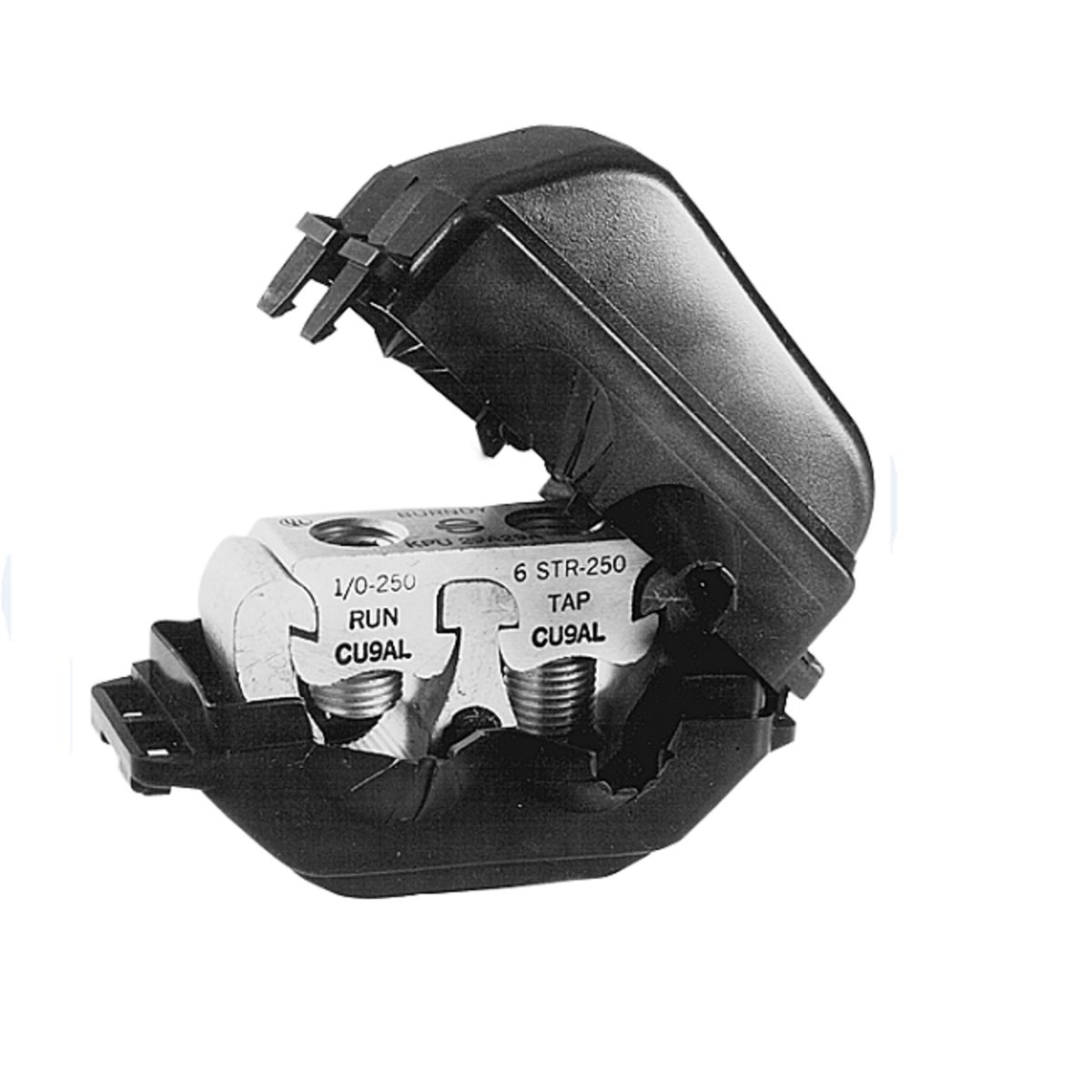

Burndy KPU34A34AC INSULATED COVER&TAP

Manufacturer: Hubbell-Burndy | Catalog # KPU34A34AC | Codale Part # 4126430
$121.66/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Gutter Tap, 4/0 AWG (Str)-500 kcmil (Run), 6 AWG (Str)-500 kcmil (Tap), Al/Cu Rated

Technical Information

Applications
For All Copper And Aluminum Combinations
Conductor Size
4/0 AWG-500 kcmil
Connection Type
Tap
Direct Burial?
No
Material
Aluminum
Max Voltage
600 V
Plated?
No
Plating Type
Tin
Size
3-1/2 IN Height X 3-1/2 IN Width X 4-5/8 IN Length
Tap Size
4/0, 2/0, 3/0, 1, 1/0, 2, 4, 6 AWG, 250, 300, 350, 400, 500 KCMIL
Temperature Rating
194
Type
KPU-AC
Voltage
600 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810623633
Finish
Tin Plated
Product UPC
78181062363
Weight
0.6000 lb

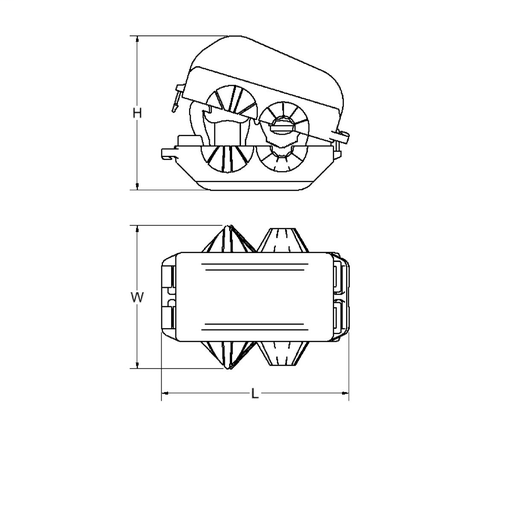

Dimensions

Height
3.48 Inch
Length
4.48 Inch
Overall Length
4.48 in
Width
3.50 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Conductor Type
  • AL C Str-Run
  • CU C Str-Run
  • AL C Str-Tap
  • CU C Str-Tap
