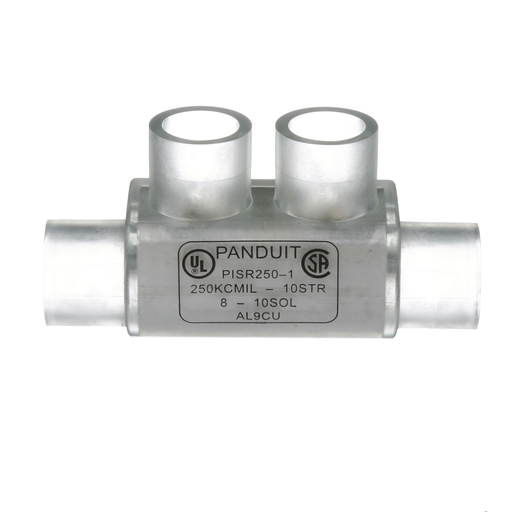

Panduit PISR250-1 Multi-Tap Connector, In-Line Splicer/Reducer, Tin Plate Al, PK1

Manufacturer: PANDUIT | Catalog # PISR250-1 | Codale Part # 4126478
$8,763.35/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual MDM Safety Data Sheet
The PISR250-1 Splicer/Reducer Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Dual rated for use with copper or aluminum conductors. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

Technical Information

Barrel Length
4 in
Base Material
Aluminum
Conductor Size
10 AWG-250 kcmil/10-8 AWG
Contact Material
Aluminum/Copper
Material
Aluminum
Size
101.6 mm L x 31.8 mm W x 56.9 mm H
Standard
CSA,E2186,UL
Strip Length
1.12 in
Temperature Rating
90 degrees C
Type
Dual Rated, In-Line, Multi-Tap
Voltage
600 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983574957
Color
Clear
Finish
Tin Plated
Product UPC
07498357495
Used With
Any Combination for Copper/Aluminum Code Conductor Wire AL9CU Rated
Weight
0.4300 lb

Dimensions

Height
56.9 mm
Length
4 Inch
Overall Length
4 in
Width
1.25 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: UL listed and CSA certified for use up to 600V & UL Temperature Rated to 90°C
