Caddy CAT32HP4Z34 J-Hook w/ Multi-Function Clip, 2" dia, 90 Cat5e / 60 Cat6 Capacity, 30lb Static Load, Pregalvanized Steel

Manufacturer: Caddy Fasteners | Catalog # CAT32HP4Z34 | Codale Part # 4126498
$1,603.89/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
3,686 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page

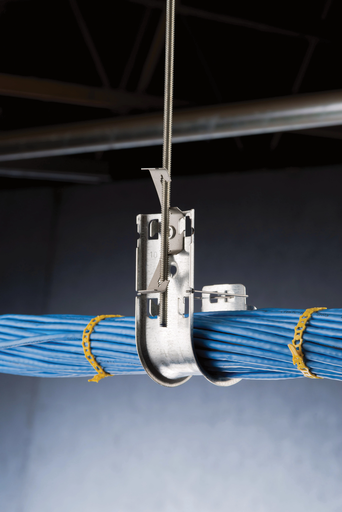

Ideal combination fasteners for threaded rod, wire, or drop rod applications with the high performance CAT HP series J-Hooks in a factory assembly. 2" (50 mm) J-hook to multi-functional 1/4" (M4-M8) threaded rod hanger.

Technical Information

Applications
For High-Performance Data Cable Including Cat5e, Cat6, Cat6A, Cat7, Fibre Optic, Datacom and Low Voltage, Electrical Fixing and Fastening
Load Capacity
30 lb
Material
Steel
Size
2 in dia, 1/4 in Rod, 12-8 AWG Wire
Standard
UL,CUL
Type
CADDY CAT HP J-Hook with Multi-Function Clip

Packaging

Standard Packaging Qty
50/Pack

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856716549
Finish
Pregalvanized
Product UPC
78285671654
Weight
0.15 kg
Features
  • Quick attachment to threaded rod or wire
  • Fully adjustable and easy to relocate to accommodate changes once installed
  • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
  • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
  • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
  • Cost effective alternative to expensive cable tray
  • Complies with EN 50174-2
  • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
  • Increased capability and application options by combining 4Z and 6Z products into one enhanced and efficient offering
  • Improved multi-function clip allows for optimized inventory while reducing job site scheduling risks associated with multiple SKUs
Certifications
  • UL ANSI/UL 2239
  • cUL CAN/CSA C22.2 No. 18.4-04
