Panduit GUBC500-6 Beam Grd Clamp, Copper, PK1

Manufacturer: PANDUIT | Catalog # GUBC500-6 | Codale Part # 4126645
$809.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

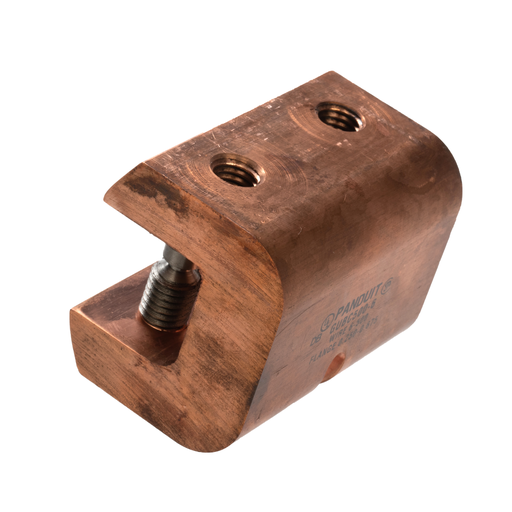

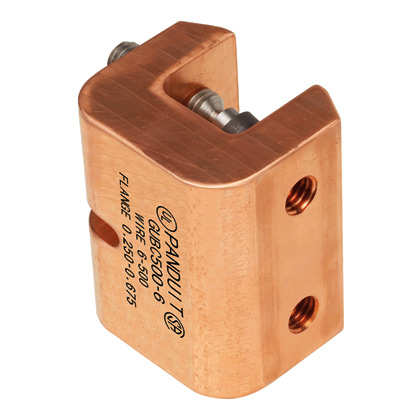

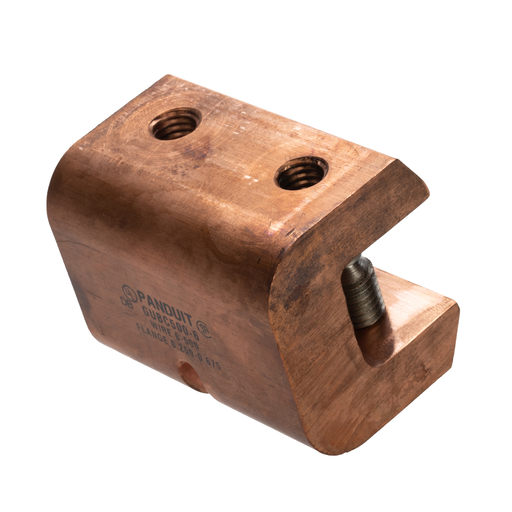

The GUBC500-6 Universal beam grounding clamp fits on a wide range of standard (angled) and wide flange (parallel) structural steel beams providing a mounting pad suitable for a two-hole compression lug. Install quickly and easily with standard 1/4" key hex wrench tooling. Designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014.

Technical Information

Applications
Utility/Ground Grid
Material
Copper
Type
Beam Grounding Clamp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
StructuredGround™

General Product Info

12-Digit UPC
074983009619
Product UPC
07498300961
Weight
3.4800 lb

Dimensions

Height
2-1/2 Inch
Length
3.15 Inch
Overall Length
3.15 in
Width
2.13 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: Meets - IEEE 837-2002, Meets IEEE 837-2014 for up to 250 kcmil, UL 467 & DB rated, CSA 22.2, complies with vibration tests per MIL-STD-202G (METHOD 201A).
