Hubbell HBL26W76BK Plug, w/TIGHT, 3P 20A 480V, L16-20P, BK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL26W76BK | Codale Part # 4128415
$111.06/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Watertight Devices, Twist-Lock® Plug, 20A, 3 Phase 480V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L16-20P, Black

Technical Information

Amperage
20 Amp
Applications
Power Connection
Body Material
Thermoplastic Elastomer
Conductor Size
10-8 AWG
Cord Type
Portable
Current
20 Amp
Material
Composite
Mounting Type
Cord
NEMA

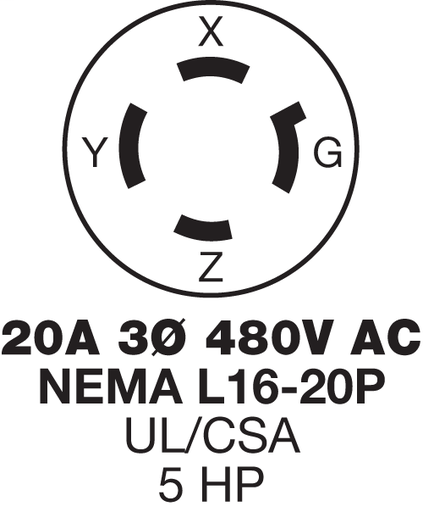

L16-20P
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

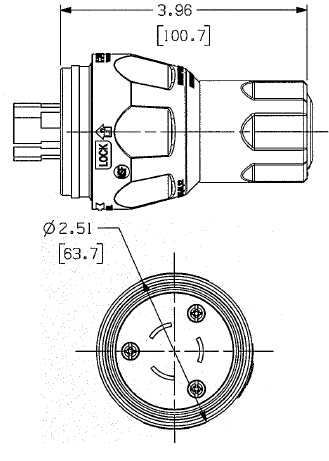

2.51 in x 2.51 in x 3.96 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Type
Male
Voltage
480 Volt
Wattage
9600 Watt
Wire Count
4
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Watertight Devices

General Product Info

12-Digit UPC
783585131658
Color
Black
Environmental Conditions
Watertight
Product UPC
78358513165
Weight
0.2500 lb

Dimensions

Height
3.96 Inch
Length
2.51 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
China
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
