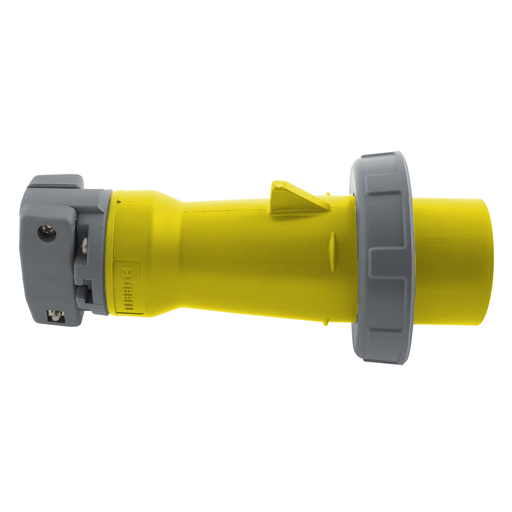

Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Hubbell HBL330P4W Pin & Sleeve Male Mating Plug, 30A 2P3W, 120V, IP68, IP69K

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL330P4W | Codale Part # 4130891
$538.28/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 30A 125V AC, 2-Pole 3-Wire Grounding, Terminal Screws, Yellow, Watertight

Technical Information

Amperage
30 Amp
Applications
High Ampacity Connections
Conductor Size
12-8 AWG
Cord Type
All Portable
Current
30 Amp
Grounding
Grounding
Material
Composite
Mounting Type
Cord
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA Standard C22.2 No. 182.1,File E146032,IEC60309-1,UL
Style
Standard Service
Tc Connection
Pressure Terminal Screws
Type
Male, Straight
Voltage
125 Volt
Wire Count
3
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585403557
Color
Yellow
Environmental Conditions
Watertight
Product Series
HBL Heavy Duty
Product UPC
78358540355
Weight
0.85 lb

Dimensions

Height
4-1/4 Inch
Length
9 Inch
Width
4.5 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Features
  • Solid one-piece pins for reliable electrical contact
  • Gasketed sealing ring provides watertight seal
  • Heavy duty external cord grips
  • Watertight
