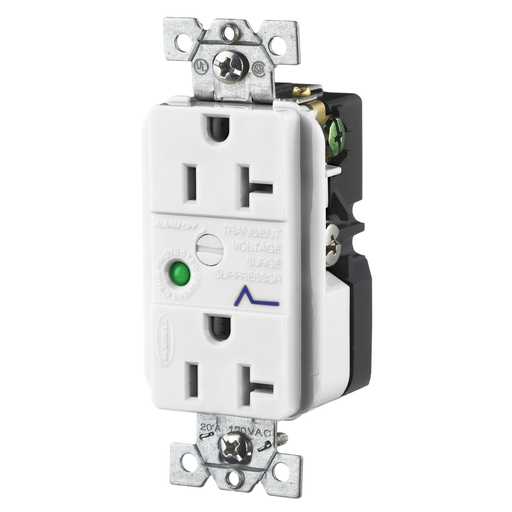

Product image for Hubbell HBL5360WSADUP SPD Receptacle, 20A 125V, 5-20R, WH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell HBL5360WSADUP SPD Receptacle, 20A 125V, 5-20R, WH

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL5360WSA | Codale Part # 4130937
$46.84/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Surge Protective Devices, Straight Blade Receptacle, Duplex, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, White

Technical Information

Amperage
20 Amp
Applications
Decorator Duplex
Current
20 Amp
Frequency
60 Hz
Material
Composite
NEMA
5-20R
Number of Phases
1 Phase
Operating Temperature
0 To 60 degrees C
Response Time
5
Size
Standard Sized Product
Standard
C22.2 No. 42,CSA,File E2186,UL,UL Standards 498
Tc Connection
Terminals
Type
Non-Reversing
Voltage
125 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Surge Supression Devices

General Product Info

12-Digit UPC
783585219899
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Specification Grade
Product UPC
78358521989
Weight
0.2650 lb

Dimensions

Height
1.8 Inch
Length
4.3 Inch
Width
2.2 in

Certifications and Compliance

Country of Origin
China
Features
  • Automatic self-grounding staple
  • Distinctive surge symbol provides quick identification
  • Power-on indicator light verifies that power is available
  • Alert alarm sounds when surge protection is no longer functioning
  • Standard Product
