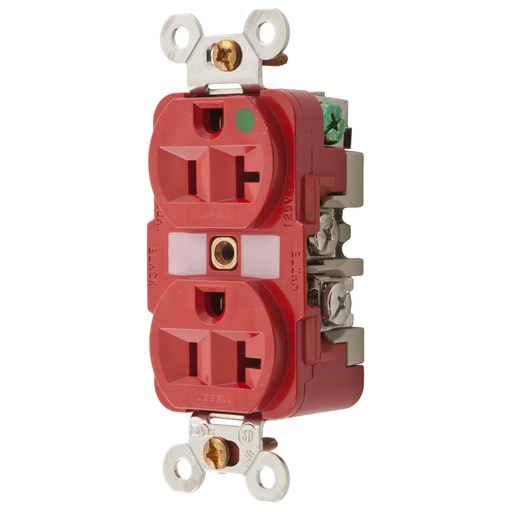

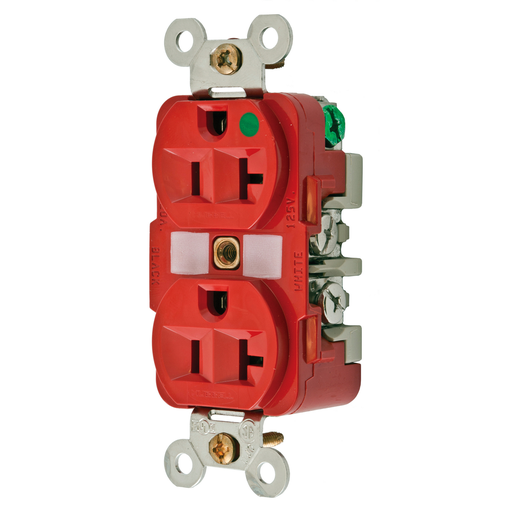

Product image for HCI HBL8300RMRI MRI RCPT, HG, 20A 1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

HCI HBL8300RMRI MRI RCPT, HG, 20A 1

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL8300RMRI | Codale Part # 4131065
$69.49/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Hospital Grade, MRI Series, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Red.

Technical Information

Amperage
20 Amp
Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
Base Material
PBT,PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon,Nylon
Flamability Class
UL 94V-2
Grade
Hospital
Grounding
Self
Horsepower
1 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Plated Brass
Size
Standard Sized Product
Standard
CSA,E2186,UL
Style
Thermoplastic Polyester Face
Tc Connection
Back & Side Wired
Type
MRI Version
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Receptacles

General Product Info

12-Digit UPC
783585148663
Color
Red
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Hospital Grade
Product UPC
78358514866
Weight
0.2 lb

Dimensions

Height
1.54 Inch
Length
4.16 Inch
Width
1.900 in

Certifications and Compliance

Country of Origin
USA
Features
  • All non-ferrous for MRI labs
  • One-piece nickel-plated brass integral ground strap
  • Unique bypass contact design
  • I.D. marking surface helps in quick circuit identification
  • MRI Version
