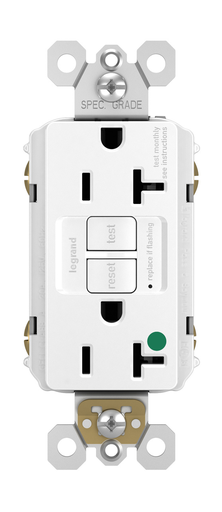

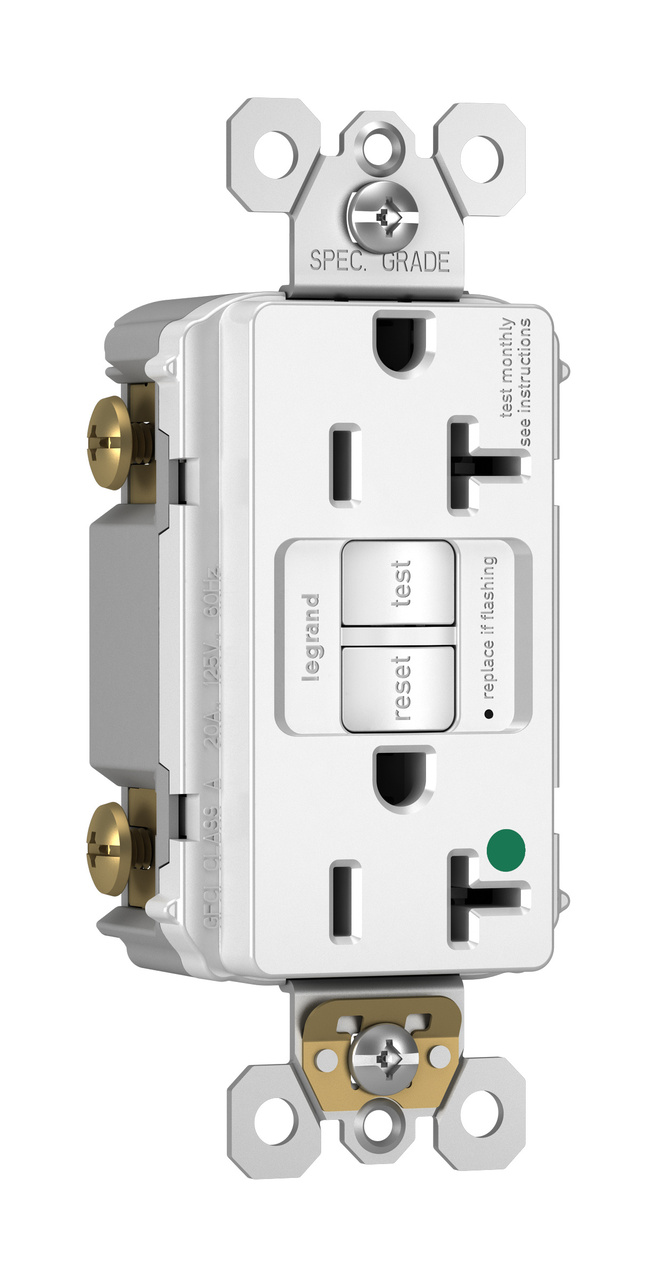

Pass & Seymour 2097-HGW 20A 125V Self Test GFCI Hospital Grade, White

Manufacturer: Legrand Pass & Seymour | Catalog # 2097HGW | Codale Part # 4131201
$92.62/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Installation / Instruction Manual
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial, Residential Grade
Connection Type
Back and Side Wire
Grade
Hospital
Material
Thermoplastic
Mounting Type
Flush
Number of Poles
2 Pole
Operating Temperature
-35degrees C to +66degrees C
Tc Connection
Back and Side Wire
Temperature Rating
-35 degrees C to 66 degrees C
Trip Range
4 to 6 mA
Trip Type
.025 Second Nominal
Type
Self-Test
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007035896
Color
White
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Gloss
Product UPC
78500703589
Weight
0.3200 lb

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Length
1.03 Inch
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features
  • Hospital Grade GFCI self-test
  • One-piece, brass, triple-wipe power contacts for lasting retention.
Certifications
  • cULus Listed
