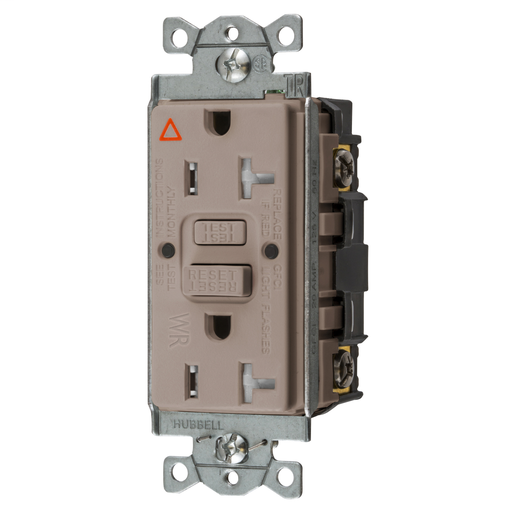

Product image for Hubbell GFTWRST20ALIG20A COMM SELF TEST TRWR IG GFR ALMOND
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Hubbell GFTWRST20ALIG20A COMM SELF TEST TRWR IG GFR ALMOND

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFTWRST20ALIG | Codale Part # 4132096
$59.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Power Protection Devices, Receptacle, Self Test, GFCI, IG, TRWR, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Almond

Technical Information

Amperage
20 Amp
Connection Type
Back and Side Wired
Current
20 Amp
Grade
Commercial
Grounding
Isolated Ground
Mounting Type
Screw/Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard
Standard
NEC®
Style
Isolated Ground
Temperature Rating
-35 degrees C to 66 degrees C
Type
Tamper-Resistant, Weather Resistant, Heavy Duty
Voltage
125 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Autoguard®, Style Line®

General Product Info

12-Digit UPC
883778122804
Color
Almond
Environmental Conditions
95% Maximum Humidity, Weather Resistant
Product Series
Heavy Duty
Product UPC
88377812280
Weight
0.3500 lb

Dimensions

Height
7.044 Inch
Length
5.048 Inch
Width
2.048 in

Certifications and Compliance

Country of Origin
China
Features
  • Patented shutter design for tamper-resistant protection
  • Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
  • Patented AUTOGUARD® self test technology
  • Protects against line and load reversal, no power to the face or downstream if device is miswired
