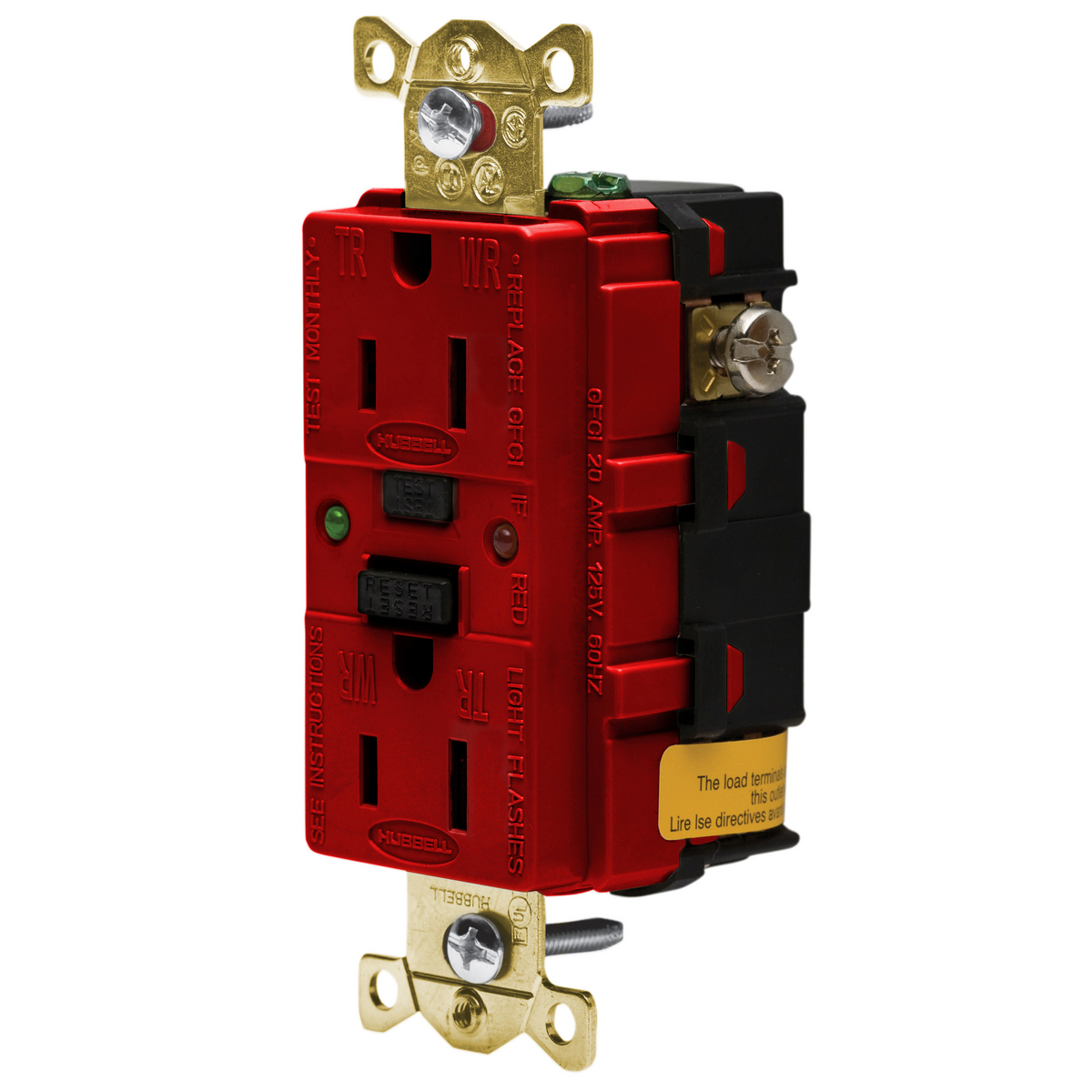

HCI GFR5262SGR 15A 125V IND TAMPER

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFR5262SGR | Codale Part # 4132140
$138.64/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Power Protection Products, Receptacles, GFCI, Tamper and Weather Resistant, Industrial Grade, Self Test, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Red

Technical Information

Amperage
15 Amp
Applications
Extra Heavy Duty Industrial Grade
Conductor Size
14-12 AWG
Current
15 Amp
Frequency
60 Hz
Grade
Industrial
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-30 To 150 degrees F
Size
Standard Sized
Standard
ANSI C-73
Style
Standard
Tc Connection
Back and Side Wired Terminal Screws
Type
Decorator, Heavy Duty
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade GFCI Receptacles

General Product Info

12-Digit UPC
783585440934
Color
Red
Product UPC
78358544093
Weight
0.4 lb

Dimensions

Height
4.6 Inch
Length
4-1/4 Inch
Width
2.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • 10kA Short Circuit Current Rating
  • Self Test Feature, Self Grounding
  • Limits improper access to energized contacts
  • Power indication
  • Ground fault indicator
  • No power at face if reverse wired
Industry Standard(s)
  • Fed.Spec
  • Meets All NEC® Requirements
