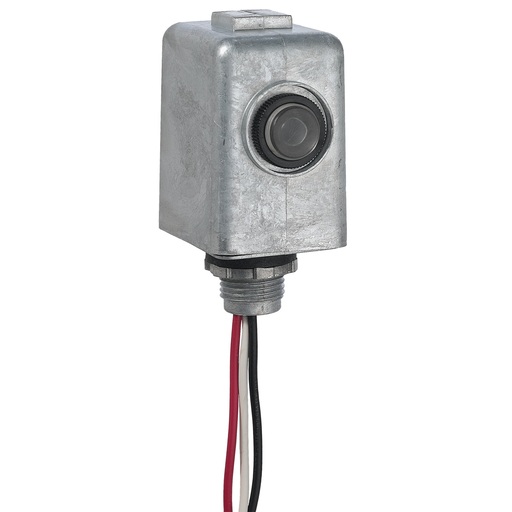

Image thumbnail 2
Image thumbnail 3
Email

Intermatic EK4436SM 105 to 305 VAC 50/60 Hz 1000 W Stem Mount Electronic Photocontrol

Manufacturer: Intermatic | Catalog # EK4436SM | Codale Part # 4133915
$61.12/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
These electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes, or outdoor lighting fixtures. Ideal for LED and induction fixtures with long-life expectations

Technical Information

Applications
Dusk to Dawn Lighting Control, Indoor/Outdoor/Raintight
Enclosure
Metal Outdoor
Input Voltage
120-277 V
Material
Metal
Max Operating Temperature
158 degrees F
Max Wire Size
18 AWG
Min Operating Temperature
-40 degrees C
Mounting Type
Stem
Operating Cycles
10k
Operating Temperature
-40degrees F to 158degrees F
Power Consumption
400m W
Power Rating
0.4 W Maximum
Sensor Type
Silicon
Size
1.75 W x 2.25 D x 3.38 H Inch
Tc Connection
Color coded Leads
Temperature Rating
-40 to 158 degrees F
Type
Electronic, Dusk-to-Dawn
Voltage
120-277 VAC
Wire Length
228.6 mm

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275148406
Color
Gray
Product UPC
07827514840
Weight
0.6 lb

Dimensions

Depth
2.188 Inch
Height
2.688 Inch
Warranty Length
8 yr
Width
1.75 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • 15-year design life
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
  • 255 J MOV surge protection element
  • 1?2\"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
  • #18 AWG wire leads
