BUR YAV35M10 35MM CU METRIC 1-H M10

Manufacturer: Hubbell-Burndy | Catalog # YAV35M10 | Codale Part # 4135893
$5.60/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Non insulated Cu tubular terminals, Metric, 1 Hole/W/insp W, 35mm, M10 stud, Tin - Electro Plated, 10 Index

Technical Information

Applications
Metric Conductor with Window Lug
Color Coding
Brown
Conductor Size
2 AWG
Conductor Type
CU C Str-Size
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Type
YAV

Manufacturer Information

Brand
Burndy
Sub Brand
Terminals, HYLUG

General Product Info

12-Digit UPC
781810294185
Finish
Tin Plated
Product UPC
78181029418
Weight
0.0006 lb

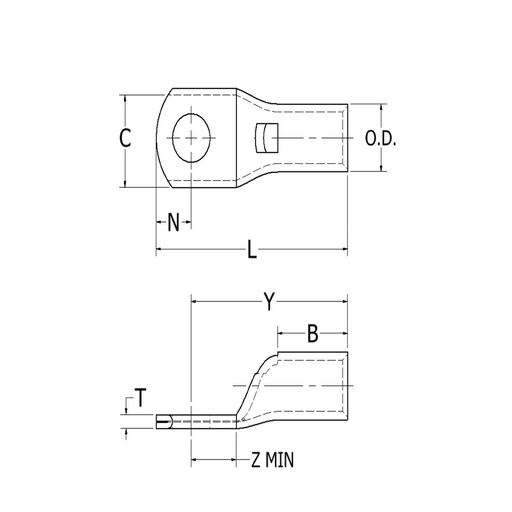

Dimensions

Height
0.46 Inch
Hole Size
10 mm
Length
0.1 Inch
Overall Length
0.10 in
Width
0.68 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Feature - Barrel Style
  • Chamfered
  • Skived
