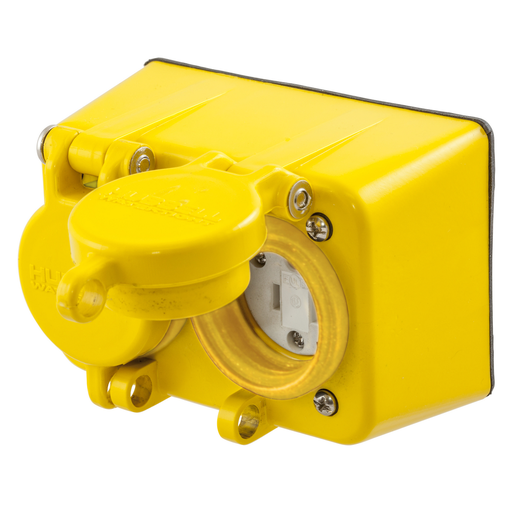

Hubbell HBL60W47D 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15R Yellow Straight Blade Device Duplex Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL60W47D | Codale Part # 4136067
$245.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Watertight Series, Straight Blade DuplexReceptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA 5-15R, Yellow

Technical Information

Amperage
15 Amp
Applications
For Industrial, Commercial
Body Material
PBT
Conductor Size
14-12 AWG
Contact Material
Nickel-Plated Brass
Current
15 Amp
Material
PBT
Mounting Type
Screw
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard Sized Product
Tc Connection
Terminal Screws
Type
Single, Watertight
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-12

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585528700
Color
Yellow
Environmental Conditions
Indoor Dry unless protected by additional means
Product Series
Watertight Devices
Product UPC
78358552870
Weight
0.3000 lb

Dimensions

Height
3.248 Inch
Length
5.048 Inch
Width
5.1 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
