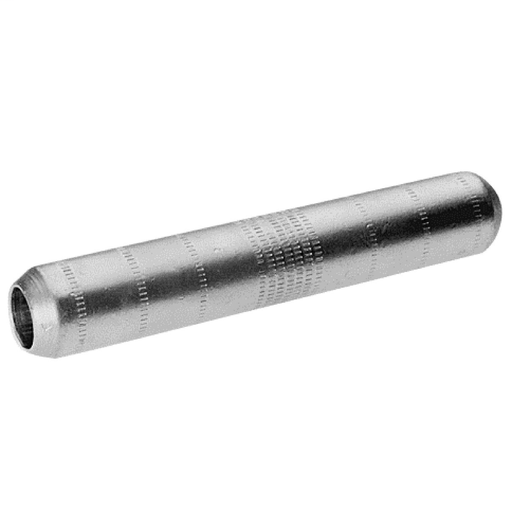

Burndy YS28T 4/0 AWG CU, Tapered End, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, PURPLE Color Code, 15 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YS28T | Codale Part # 4136384
$53.16/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Copper Compression Splice, 4/0 AWG, 2.67" Splice Length, Short Barrel, Tapered End, Tin Plated.

Technical Information

Applications
For Higher Voltage Applications From 5 KV Through 35 KV
Color Coding
Purple
Conductor Size
4/0 AWG
Connection Type
T-Connector
Material
Copper
Size
2.67 IN Length X 1.13 IN Dimension B
Temperature Rating
90 C
Type
YS-T, High Voltage, Standard Barrel
Voltage
35,000 Volt
Wire Size
0000 AWG

Manufacturer Information

Brand
Burndy
Sub Brand
HYLINK

General Product Info

12-Digit UPC
781810001226
Finish
Tin Plated
Product UPC
78181000122
Weight
0.1200 lb

Dimensions

Height
0.69 Inch
Length
2.67 Inch
Width
0.69 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
  • Seamless Types YS-T High Conductivity Copper Electro-Tin Plated Compression HYLINK High-Voltage Splices With Standard Barrel And Tapered Ends Are Ideally Suited For Higher Voltage Applications From 5KV Through 35 KV, Tapered Connector Ends Per EEI Standard TD160, Suitable For Use On Voltages 5KV Through 35KV To Aid In Preventing Corona Emission And Simplify Taping Thus Lowering Installed Cost, Type YS-T Four Center Wire Stops: Provides A Center Wire Stop For Proper Conductor Insertion, Tools, Die Nest Catalog Number, Die Indentor Catalog Number: Y35, Y39, Y750 Tool, U28D-1 Die Nest, Y34PR Indentor, Y35P3 Adaptor, Installation Tool: Y34B, Y34PR Indentor, B28D Die Nest, Tapered End: Yes, Oil Stop: No, Die Index: 15 Element A, Conductor Type: Commercial Stranded Copper, Tools, Die Set Catalog Number, And (number Of Crimps): PAT750 Tool, U28RT Die, (2), Y35, Y39, Y46, Y750 Tool, U28RT Die With PUADP-1 Adapter, Wire Strip Length: 1-3/16 IN
