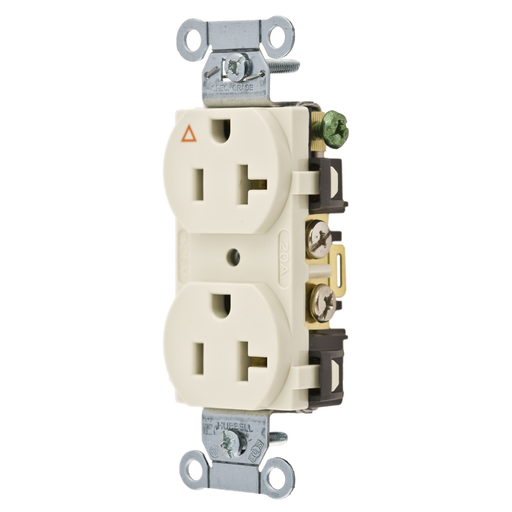

Hubbell IG5352LACOMM 20A SIDE & BACK WIRED IG DUP LA

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # IG5352LA | Codale Part # 4136575
$12.96/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Isolated Ground, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Back and Side Wired, Single Pack

Technical Information

Amperage
20 Amp
Applications
For Hubbell-Pro Heavy Duty
Base Material
Nylon,Nylon
Conductor Size
12-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Current
20 Amp
Dielectric Strength
2000 V
Face Material
Nylon,Nylon
Flamability Class
UL 94 V-2
Grade
Heavy-Duty, Specification
Grounding
Isolated Ground
Horsepower
1 hp
Material
Nylon
Mounting Type
Flush/Recessed
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Brass
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Smooth Face
Tc Connection
Back and Side Wired Terminal Screws
Type
Traditional
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585146843
Color
Light Almond
Environmental Conditions
Indoor Dry Unless Protected by Additional Means, UL 94V-2 Flammability Rating
Product Series
Hubbell-PRO
Product UPC
78358514684
Weight
0.15 lb

Dimensions

Height
1.07 Inch
Length
3.28 Inch
Width
1.57 in

Certifications and Compliance

Country of Origin
China
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
  • Certified to CSA 22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Features
  • Triangle marking on face indicates isolated ground
  • Slender/compact design
  • Smooth Face
