Product image for LEV RGF15-OB RENU 15A TR GFCI RCPT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

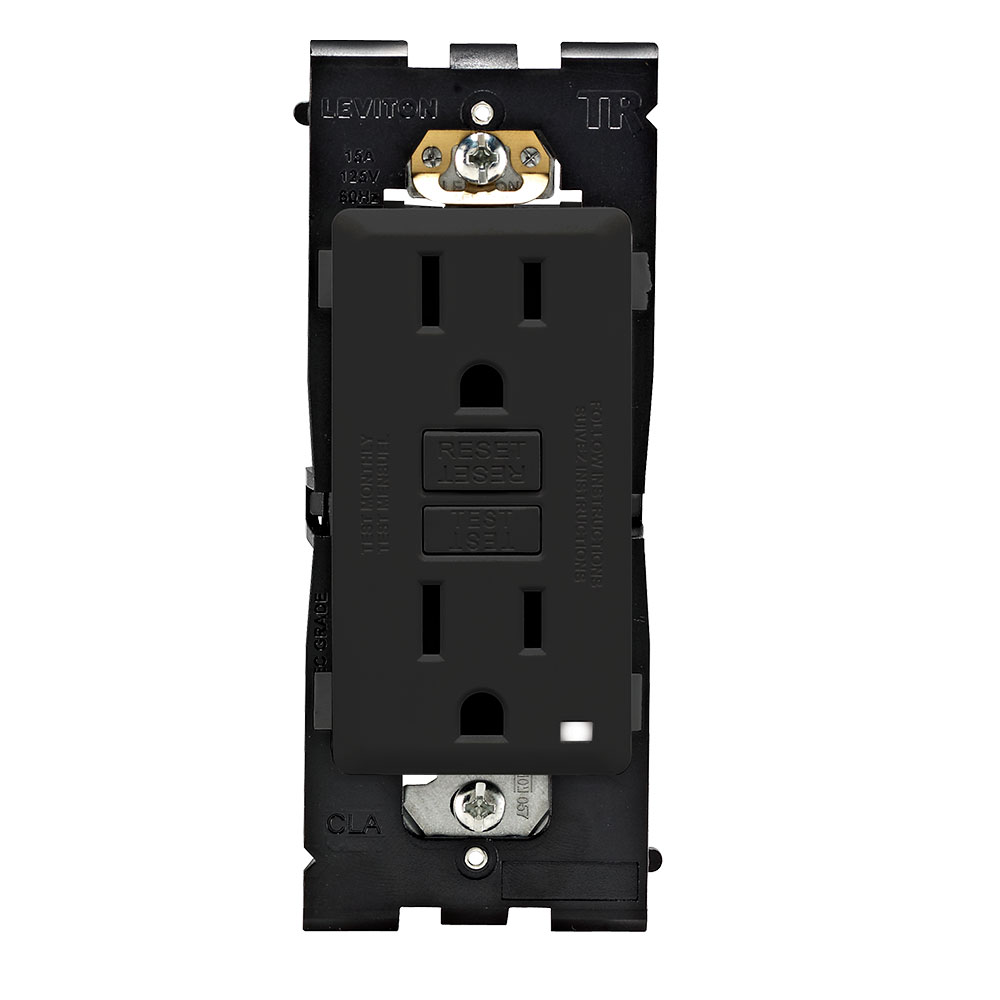

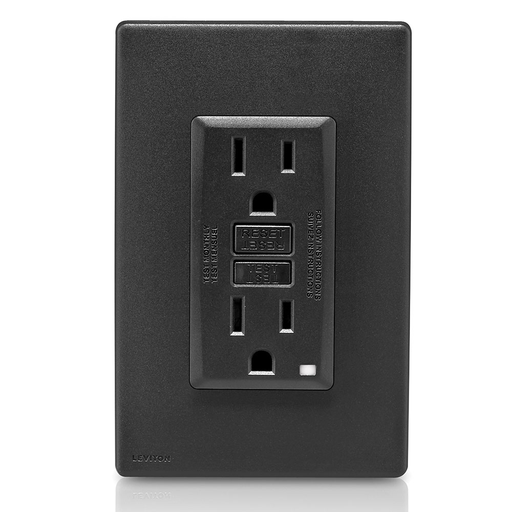

LEV RGF15-OB RENU 15A TR GFCI RCPT

Manufacturer: Leviton | Catalog # RGF15-OB | Codale Part # 4136860
$57.91/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 125 Volt, NEMA 5-15R, Side Wired & Back Wired Renu Tamper-Resistant Self-Test SmartlockPro GFCI Receptacle/Outlet - Onyx Black

Technical Information

Amperage
15 Amp
Applications
Residential
Body Material
Polycarbonate,Polycarbonate
Dielectric
1250 V
Face Material
Thermoplastic,Thermoplastic
Flamability Class
Rated HB Or Better UL94
Grade
Commercial,Residential
Grounding
Green Ground Screw,Self-Grounding
Horsepower
1 hp
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
0 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,ANSI C-73
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Trip Range
4-6 mA
Type
GFCI,GFCI
Voltage
125 Volt
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
Renu

General Product Info

12-Digit UPC
078477796917
Color
Black
Product UPC
07847779691

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Certifications
CULus,CULus
Country of Origin
China
Features
  • 15A-125V
  • Tamper-resistant to meet the child safety requirements of the National Electrical Code®
  • Designed to meet the latest UL standard for auto-monitoring (self-test); periodically conducts an automatic internal test to confirm that it can respond to a ground fault
  • Patented lockout feature for added safety prevents RESET if GFCI is not operating properly
  • Built-in shutters help prevent access by most foreign objects
  • Available in 20 popular colors to match any dcor
  • Once installed, Renu outlets can be updated to a new color by ordering an RKG15 color change kit
  • Outlet face easily snaps OFF and ON to change color
  • To complete the look, snap on a matching or contrasting Renu screwless wallplate (sold separately)
  • Turns the electrical device into a decorative, easily updated accessory
  • Shallow size is easy to install in any wallbox
  • Self-grounded when installed in a properly grounded metal wallbox
  • Back and side wired for fast, easy installation
  • Terminals designed to withstand high torque and resist wire pullout
  • 20A tamper-resistant outlet is also available
  • Use only with Renu wallplates
  • SAFE - Patented lockout feature for added safety prevents RESET if GFCI is not operating properly. Two Tamper-Resistant receptacles for improved safety, TR symbol located on strap
  • CONVENIENT - Features a shallow design that easily installs in any wallbox, back and side wiring options allow for quick installation
  • FLEXIBLE Once installed, Renu outlets can be updated to a new color by ordering an RKG15 color change kit
  • EASY - Matte finish available in 20 popular colors that works with Leviton Renu wallplate REWP1/REWP2/REWP3/REWP4
NEMA
  • 5-15R
Color Variations
  • Cafe Latte
