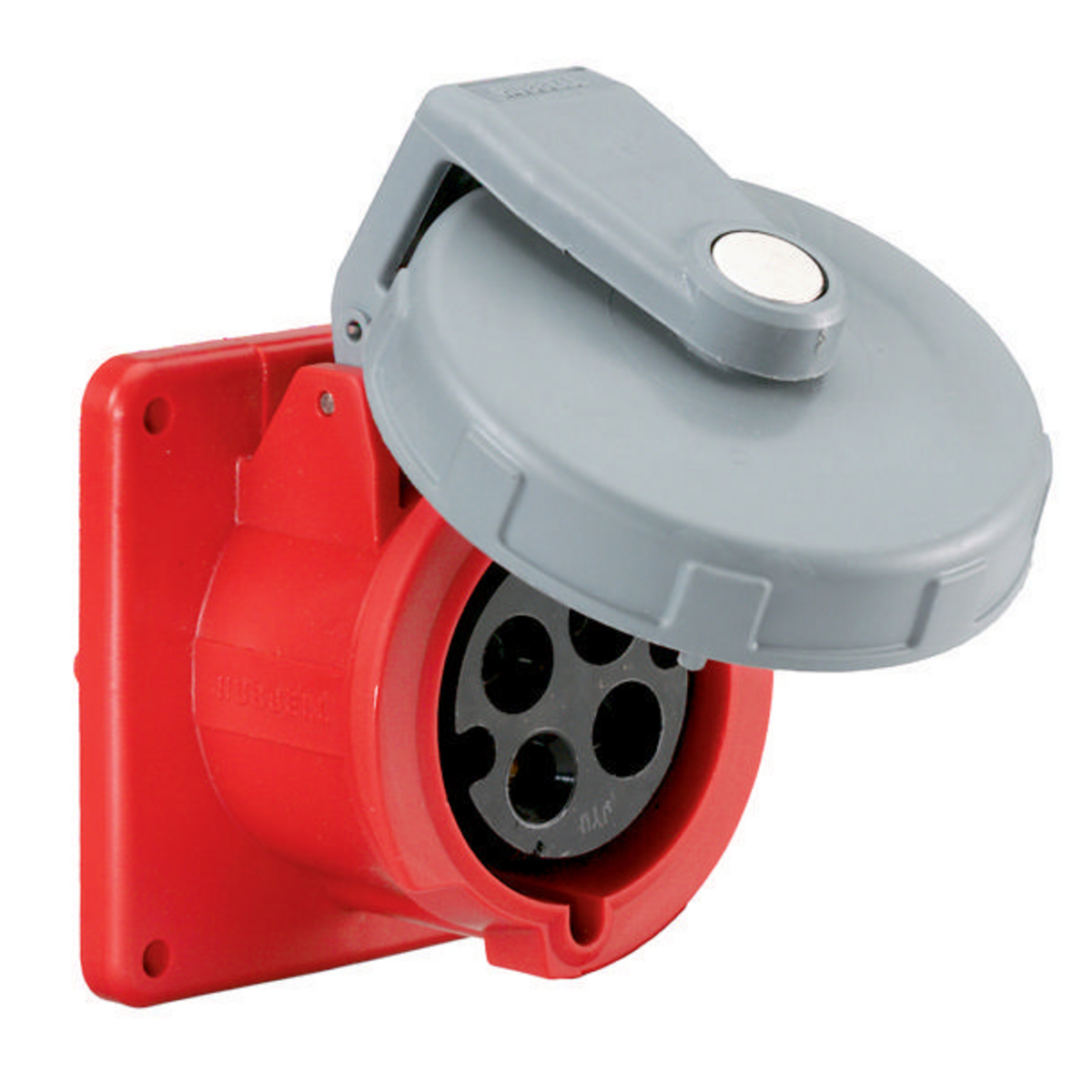

Hubbell HBL416R6W PS, IEC, Receptacle, 3P4W, 16A 380-415V, w/T

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL416R6W | Codale Part # 4137602
$230.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 16A 380-415V, 3-Pole 4- Wire Grounding, Terminal Screws, Red, Watertight

Technical Information

Amperage
16 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
14-10 AWG
Current
16 Amp
Material
Thermoplastic
Mounting Type
Screw, External, Surface
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA StandardC22.2 No. 182.1,File E146032,IEC 60309-1 IEC 60309-2,UL
Style
Standard Service
Tc Connection
Pressure Screw Terminals
Type
Single Flanged, 4-in-1
Voltage
380-415 Volt
Wattage
6640 Watt
Wire Count
4
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585404226
Color
Red
Product Series
HBL Heavy Duty
Product UPC
78358540422
Weight
1.25 lb

Dimensions

Height
4.06 Inch
Length
4.43 Inch
Width
4.370 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
USA
Features
  • Corrosion-resistant self-closing gasketed cover
  • Insulated non-metallic housing
  • Color coded housings for easy identification
  • 4 Receptacles in one
