PAN NE2X2WH6-A Panduct® NE2X2WH6-A

Manufacturer: PANDUIT | Catalog # NE2X2WH6-A | Codale Part # 4138085
$101.72/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

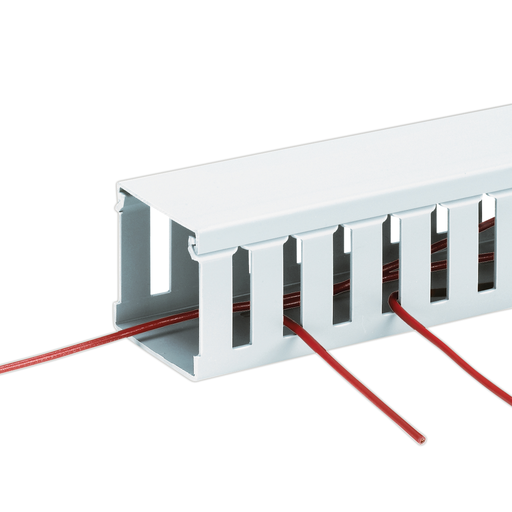

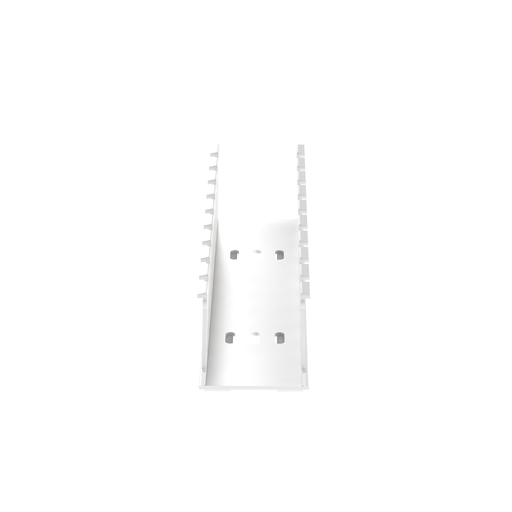

The NE2X2WH6-A Halogen-Free Wide Slot Wiring Duct design provides greater rigidity and allows for a wide range of wire/bundle sizes. Upper and lower scorelines for easy finger/sidewall section removal. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95.C (203.F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes with adhesive. 2.08" x 2.14" (52.8mm x 54.4mm) and 6' (1.83m) long. Cover sold separately. Color White. 6 pieces per package.

Technical Information

Material
Polyphenylene Oxide
Mounting Type
Mounting Holes With Adhesive
Size
54.4 x 52.3 mm
Tc Connection
Standard
Type
Type 4 Mild Steel Freestanding Enclosure

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983214372
Color
White
Product UPC
07498321437
Weight
1.1725 lb

Dimensions

Height
2.08 Inch
Length
1.8 m
Overall Length
6 ft
Thickness
0.07 IN
Width
54.4 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: RoHS Compliant, UL Recognized, CE Compliant; CSA Approved; EN 45545-2 HL1
