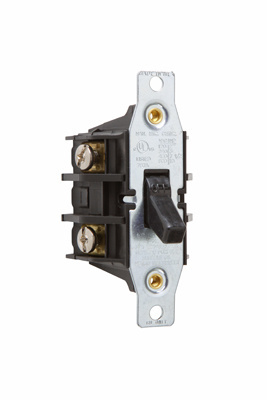

Image thumbnail 2
Email

Pass & Seymour 7802-MD 30A 600VAC 2-Pole Single Phase Manual Controller

Manufacturer: Legrand Pass & Seymour | Catalog # 7802MD | Codale Part # 4138823
$66.24/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Double pole, Single Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect - 10KA @ 600VAC, 30A max Class J fuse.

Technical Information

Actuator
Toggle Switch
Amperage
30 Amp
Applications
Commercial and Industrial
Connection Type
Back and Side Wire
Mounting Type
Box
Number of Poles
2 Pole
Operating Cycles
50000
Operating Temperature
Maximum continuos +75degrees C, minimum -40degrees C
Size
1.753" Depth x 1.825" Width x 2.375" Height
Tc Connection
Side & Back Wired
Temperature Rating
-40 to 75 degrees C
Type
Manual, Toggle Actuated
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007267655
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
78500726765
Weight
0.2900 lb

Dimensions

Depth
1.753 Inch
Height
3.67 Inch
Width
1.825 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • High Horsepower rating of 20HP
  • Gull-wing shaped brass terminal pressure clamps
  • Constructed of glass-reinforced thermoplastic
  • UL508 and cULus Listing of individual device and assembled device within enclosure
  • Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
  • External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
