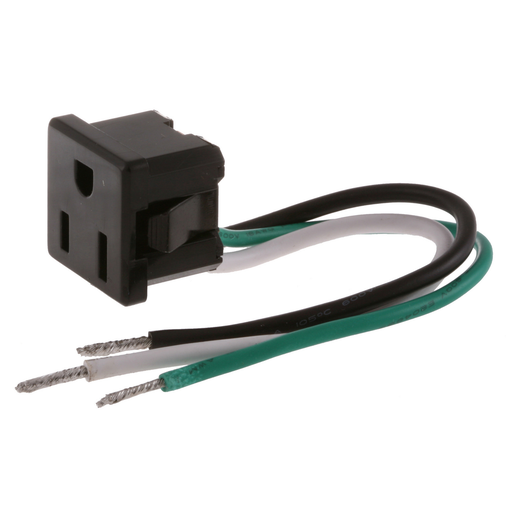

Product image for Hubbell RR374 RECEPT SINGLE 5-15 SNAP IN BLACK
Image thumbnail 0
Image thumbnail 1
Email

Hubbell RR374 RECEPT SINGLE 5-15 SNAP IN BLACK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RR374 | Codale Part # 4139239
$19.45/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
TradeSelect, Straight Blade, Single Receptacle, Snap-In, 15A 125V, 2-Pole 3-Wire, 5-15, Black

Technical Information

Amperage
15 Amp
Applications
Single Receptacle
Conductor Size
16-14 AWG
Current
15 Amp
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Size
Standard Sized
Tc Connection
Wire Leads
Type
Snap-In Receptacles
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
16-14 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
883778304224
Color
Brown
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Lampholder Accessories
Product UPC
88377830422
Weight
0.0800 lb

Dimensions

Height
1 Inch
Length
6 Inch
Width
1.0 in

Certifications and Compliance

Country of Origin
China
Features
  • Panel cutout .95 x .95 inch (24.1 x 24.1 mm)
  • Accommodate panel thickness of .031 to .062 inch (0.7 to 1.5 mm)
  • Standard
