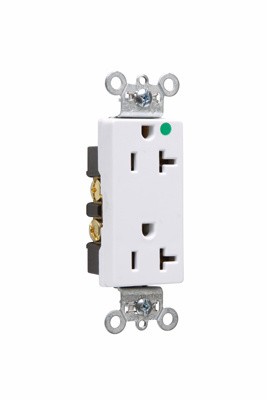

Pass & Seymour 26362-HGW Heavy-Duty Decorator Hospital Grade Duplex Receptacle Back & Side Wire 20Amp 125Volt White

Manufacturer: Legrand Pass & Seymour | Catalog # 26362HGW | Codale Part # 4139785
$82.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Heavy-Duty Decorator Hospital Grade Duplex Receptacle Back & Side Wire 20amp 125volt Red

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Duplex
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Hospital
Material
Nylon
Mounting Type
Wall, Flush, Screw
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.322 L x .833 W x 3.813 H In
Standard
NEC®
Style
Decorator
Tc Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Decorator, Heavy Duty
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007785593
Color
White
Finish
Gloss
Product UPC
78500778559
UNSPSC
39121406

Dimensions

Depth
0.833 Inch
Height
2.635 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face.
  • Terminal compartments isolated from each other for positive conductor containment.
  • All devices fit standard #26 opening wall plate.
  • Tri-drive terminal and mounting screws.
  • Auto-ground clip assures positive ground.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
