HWDK RR15KTR RCPT, DUP, TR, 15A 125

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # RR15KTR | Codale Part # 4142076
$2.37/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

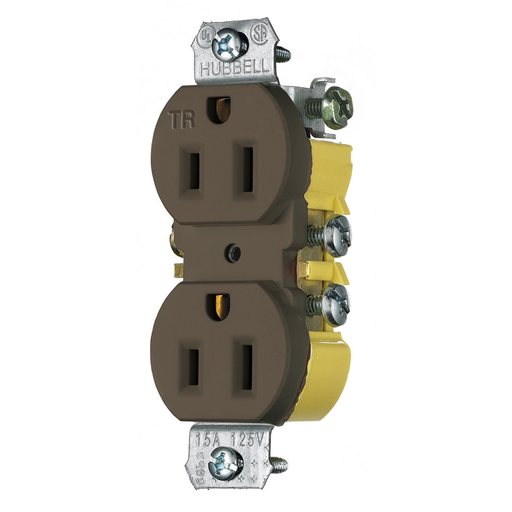

TradeSelect, Straight Blade, Duplex Receptacle, Tamper Resistant, Cut Ears, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Brown

Technical Information

Amperage
15 Amp
Applications
Residential Receptacles
Conductor Size
14-12 AWG
Current
15 Amp
Material
Thermoplastic
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized
Tc Connection
Eight Push Wire Holes
Type
Duplex
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Trade-Select Straight Blade

General Product Info

12-Digit UPC
883778301698
Color
Brown
Product UPC
88377830169
Weight
0.1000 lb

Dimensions

Height
1.1 Inch
Length
3.7 Inch
Width
1.400 in

Certifications and Compliance

Country of Origin
China
Performance
  • Environmental - Operating temperature - -20°C to 60°C
  • Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
Features
  • Smooth indented face appearance
  • Multiple-drive Slot/Phillips/Robertson head screws
  • Tamper Resistant- Less Ears
  • Tough thermoplastic ultrasonically welded cover and base
