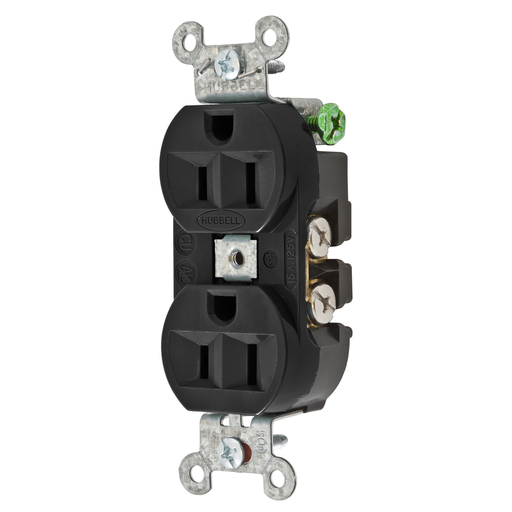

Hubbell 5262BLK Receptacle, DUP SB, HUBPRO, 15A 125V, SM , BK

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 5262BLK | Codale Part # 4142765
$6.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black

Technical Information

Amperage
15 Amp
Applications
Heavy Duty
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Hubbell-Pro Series
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rating
125 V
Screw Material
Steel, Zinc Plated
Size
Standard Sized
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL File No. E2186
Style
Finder Groove Face
Tc Connection
Back & Side Wired
Temperature Rating
Maximum continuous 75?degrees C; minimum -40?degrees C (w/o impact)
Type
Traditional, Heavy Duty
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-10 A

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585109824
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Smooth
Product Series
Hubbell-PRO
Product UPC
78358510982
Weight
0.25 lb

Dimensions

Height
1.09 Inch
Length
3.28 Inch
Width
1.41 in

Certifications and Compliance

Certifications
C22.2,Certified To CSA,Guide RTRT Fed Spec WC596G,Meets WD-1 Heavy Duty And WD-6 Requirements,No. 42 File 285.,UL Listed To UL498 File E2186
Country of Origin
Puerto Rico
Industry Standard(s)
  • Certified to CSA 22.2, No. 42
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
Features
  • Slender/compact design
  • Finder Groove Face
  • Triple wipe contacts
