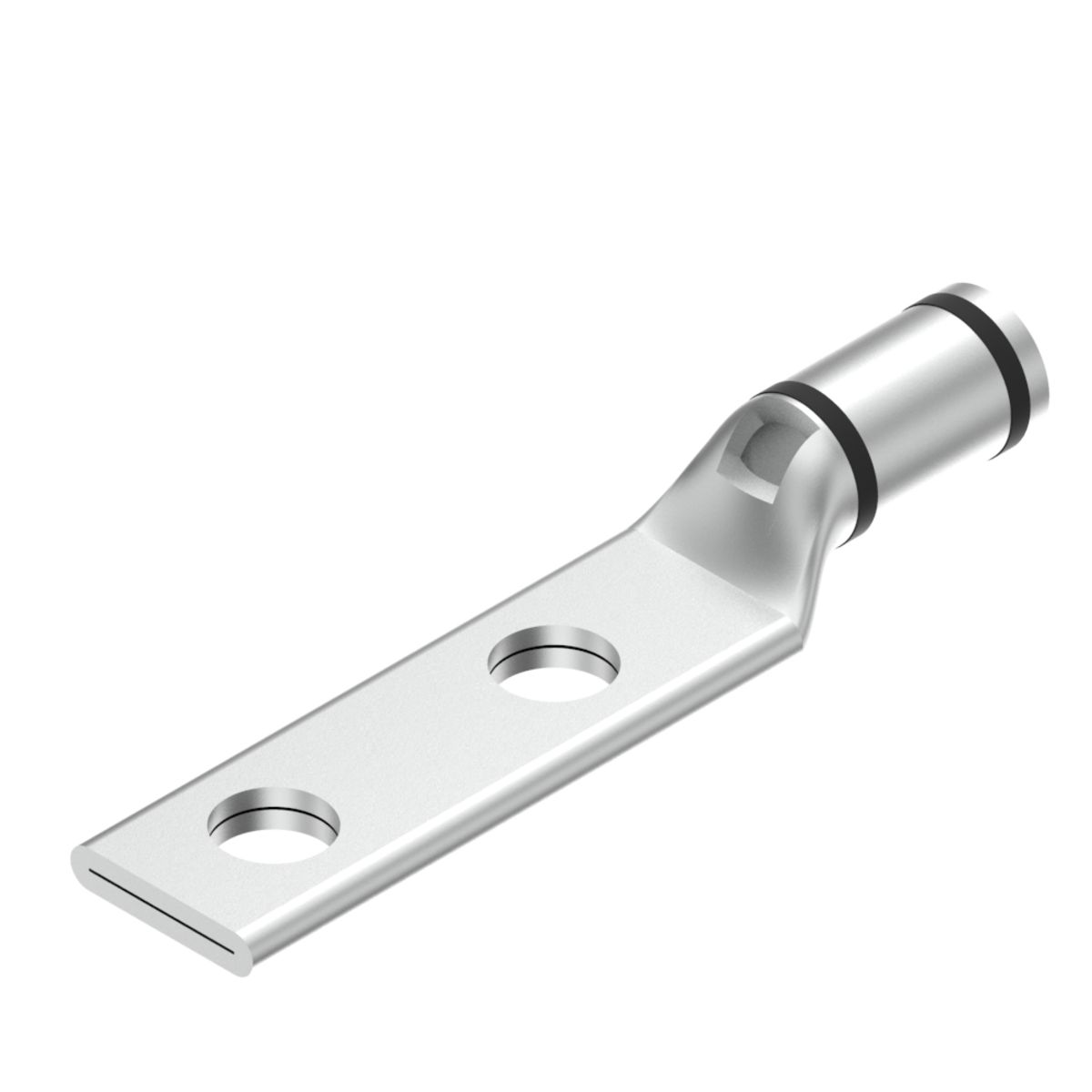

Burndy YAV26L2NTCFX 2/0 Flex G,H,I,K,M,DLO, 2/0 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90.C, Up to 35kV, Black Color Code, 13 Die Index

Manufacturer: Hubbell-Burndy | Catalog # YAV26L2NTCFX | Codale Part # 4143536
$32.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Copper Compression Lug, 2 Hole w/ Inspection window, 2/0 Flex, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel, Tin Plated.

Technical Information

Applications
For Flex Conductors
Cable Size
2/0 AWG, 2/0 AWG Weld, 325/24, 70 SQ-MM For Class 5 Conductor
Color Coding
Black
Conductor Material
Copper
Conductor Size
2/0 AWG
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin
Stud Size
0.5 in
Type
Standard Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Burndy
Sub Brand
HYLUG

General Product Info

12-Digit UPC
781810021781
Finish
Tin Plated
Product UPC
78181002178
Weight
0.1400 lb

Dimensions

Height
0.63 Inch
Hole Size
14 mm
Length
4.24 Inch
Overall Length
4.24 in
Width
0.93 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Feature - Barrel Style
  • Chamfered
  • Skived
