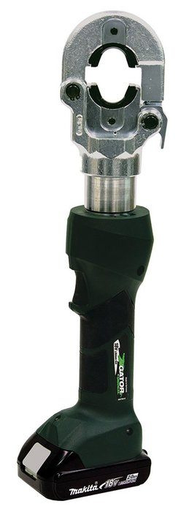

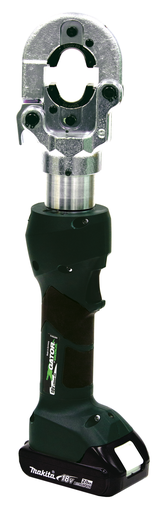

Greenlee EK622LX11 CRIMPER, EK622LX 6T LI, STD, 120V

Manufacturer: Greenlee | Catalog # EK622LX11 | Codale Part # 4143777
$13,506.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Gator® Battery Powered 6 Ton Crimping Tool. 120V Charger. Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback. Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. State of the art 18V lithium ion (Li-ion) battery provides 70 percent more cycles per charge and faster cycle times. LED light provides the operator with the battery charge and tool maintenance status. In line tool style is light weight and very easy to control. One trigger controls all tool functions. Crimping head rotates 350°. Tools automatically retract when the crimping or cutting cycle is complete. Overmolded tacky grip areas make gripping the tool easier and more comfortable. LED work light illuminates dark work areas. Greenlee battery-powered crimping tools now use bio-degradable oil. Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life. Accepts Greenlee KC22 and KA22 series crimping dies. Includes 04292 die adapters which can be used with all industry "W" style crimping dies and Greenlee KD6 style dies.

Technical Information

Applications
6 Ton Crimping
Conductor Size
8 AWG-350 kcmil (AL)/8 AWG-600 kcmil (CU)
Connector Type
Color-coded lugs and splices
Crimping Force
12,000 lb
Handle Type
In-Line Style with Over Molded Rubber Grip
Standard
C/US UL Listed
Type
Die Style, Standard
Wire Size
8 AWG-600 MCM Cu, 8 AWG-350 MCM Al

Manufacturer Information

Brand
Greenlee
Sub Brand
Gator®

General Product Info

12-Digit UPC
783310609513
Product UPC
78331060951
Weight
16.7000 lb

Dimensions

Overall Length
15.75 in

Certifications and Compliance

Country of Origin
Germany
Features
  • Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specificationsState of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle timesLED light provides the operator with the battery charge and tool maintenance statusIn Line tool style is light weight and very easy to controlOne trigger controls all tool functionsCrimping head rotates 350°Tools automatically retract when the crimping cycle is completeOver molded tacky grip areas make gripping the tool easier and more comfortableLED work light illuminates dark work areasGreenlee battery-powered crimping tools now use bio-degradable oilSmart chargers control the charging current, charging voltage and battery temperature to maximize battery lifeAccepts Greenlee KC22 and KA22 series crimping diesIncludes 04292 die adapters which can be used with all industry \"W\" style crimping dies and Greenlee KD6 style diesAvailable with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
Application
  • 6 Ton Crimping
