HWDK USB20AC5W RCPT DUP 20A 125V 5A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # USB20AC5W | Codale Part # 4145033
$83.46/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

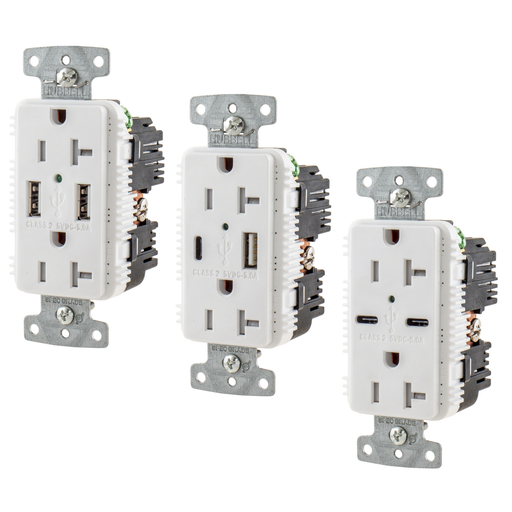

USB Charger Duplex Receptacle, 20A 125V,2-Pole 3-Wire Grounding, 5-20R, 1) 5A "C" USB and "A" Ports, White

Technical Information

Amperage
20 Amp
Applications
USB Charging/Power
Conductor Size
14-12 AWG
Current
20 Amp
Material
Composite
Mounting Type
Screw
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard
Style
Style Line Decorator
Tc Connection
Terminal Screws
Type
Non-Reversing
Voltage
125 VAC
Wattage
2500 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
USB Chargers

General Product Info

12-Digit UPC
883778307249
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product Series
Heavy Duty
Product UPC
88377830724
Weight
0.3800 lb

Dimensions

Height
1.9 Inch
Length
4-1/4 Inch
Width
2.2 in

Certifications and Compliance

Country of Origin
China
Features
  • High Power 5 Amp, 5 Volt USB Output
  • Combination Ports, One Type A, One Type C
  • Tamper Resistant Commercial Grade Duplex Compatible
  • USB Ports Rated 10,000 Cycles
