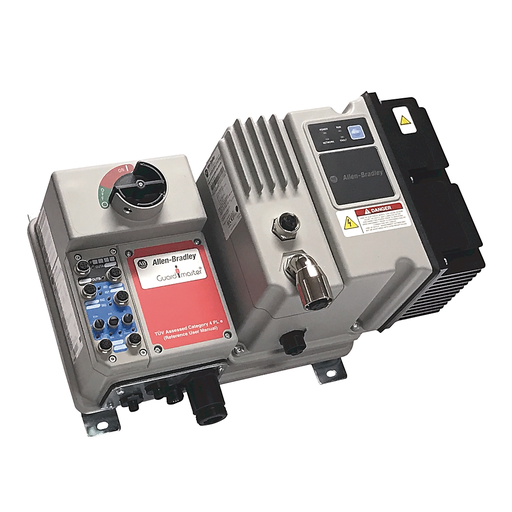

A-B 284E-FVD2P3S-10-RRG-SBG-DB1-EMI

Manufacturer: Allen Bradley / Rockwell | Catalog # 284E-FVD2P3S-10-RRG-SBG-DB1-EMI | Codale Part # 4146204
$6,145.68/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
EtherNet_IP ArmorStart VFD - Safety

Technical Information

Applications
Decentralized
Connection Type
Quickdisconnect
Control Voltage
24 V
Display Type
LED Diagnostic
Enclosure
Type 4/12, IP67
Enclosure Rating
12, IP67
Enclosure Type
12 And IP 67,UL Type 4
Frequency
0/400 Hz
Mounting Type
4 User Inputs
Number of Phases
3 Phase
Output
2 User Outputs
Output Current
2.3 A
Power Supply
24VDC
Size
420mm(16.5in),268(10.6),236(9)
Standard
CCC,KC
Start Type
Sensorless Vector Control VFD
Tc Connection
Quickdisconnect
Type
Variable Freq Drive

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
ArmorStart

General Product Info

12-Digit UPC
889508118017
Product UPC
88950811801
Weight
38.1900 lb
Features
  • Available for use with round quick connect power media or fixed pipe and wire
  • Offers local disconnecting means, embedded field I/O, and local logic that uses DeviceLogix® software
  • Includes a hardened, wash-down rating with the ability to mount the device near the motor or machine, which provides shorter cable runs
  • Offers EtherNet/IP™ or DeviceNet™ communication capabilities and Embedded Switch Technology
  • Is suitable for group installations with high short circuit current rating
  • Offers LED status and diagnostic indication
  • Allows the ability to choose factory installed options for specific applications
