Hubbell HBL6700 WP LIFT COVER ASSY, LCK 20A LESS RECEPT

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL6700 | Codale Part # 4147194
$63.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Watertight Devices, Accessories, Weather Protective Lift Cover, Yellow, For use with locking 20A receptacles

Technical Information

Applications
For Power Distribution
Enclosure Type
NEMA 3R, 3RX, 4X, 12
Flamability Class
UL94 V-0
Material
Non-Metal
Mounting Type
Screw
Operating Temperature
-40 degrees C

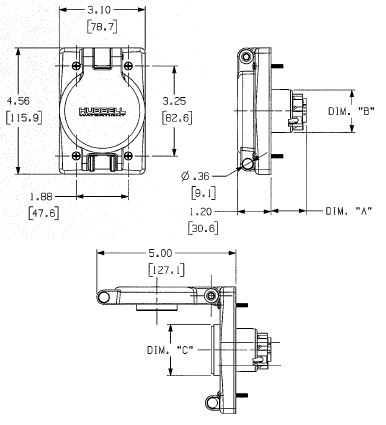

Size
4.56 in x 3.10 in x 1.20 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Temperature Rating
-40 degrees C to 60 degrees C
Type
Rectangular, Molded, Watertight

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Weatherproof Covers

General Product Info

12-Digit UPC
783585456508
Color
Yellow
Construction
Molded
Product UPC
78358545650
Shape
Rectangle
Used With
Locking 20 A Receptacles
Weight
0.3000 lb

Dimensions

Height
1.2 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Impact resistant PBT cover plate
  • Stainless steel hinge spring and pin
  • Thermoplastic elastomer seal
