PAN FX23RSNSNSNM003 Opti-Core® 2 Fi

Manufacturer: PANDUIT | Catalog # FX23RSNSNSNM003 | Codale Part # 4147599
$139.23/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

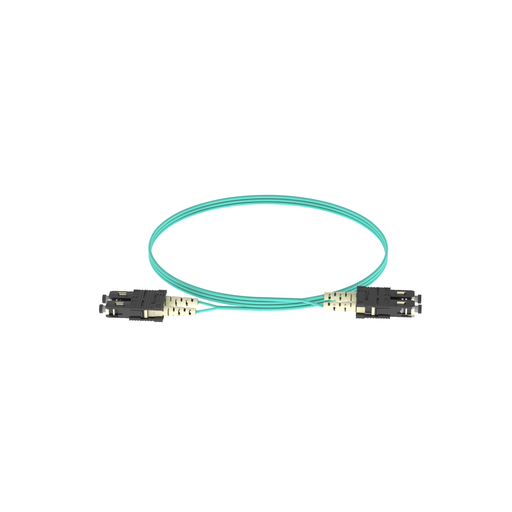

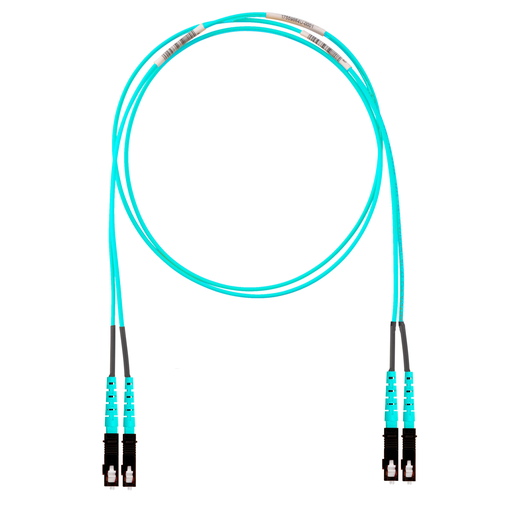

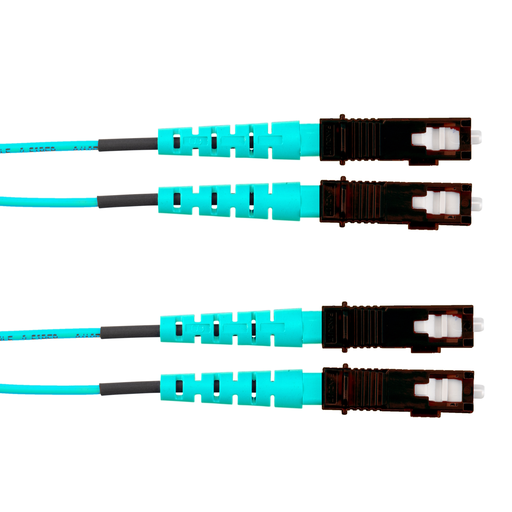

The duplex fiber patch cord is OM3 with a 3mm jacket. It is Riser (OFNR) rated and features SC Duplex connectors. It has standard insertion loss and is 3 meters in length.

Technical Information

Applications
Provide Interconnect and Cross-Connect of Applications in Entrance Facilities, Telecommunications Rooms, Data Centers, at the Desk and Network Applications to Interconnect Pre-Terminated Cassettes in Main Distribution, Horizontal Distribution, and Equipment Distribution Areas
Body Type
Duplex
Boot Color
Ivory
Cable Type
Duplex
Connector Type
SC Duplex
Fiber Type
OM3
Max Operating Temperature
158 degrees F
Min Operating Temperature
-20 degrees C
Number of Fibers
2
Number of Poles
2 Pole
Number of Screws
2
Plug Type
SC/APC
Standard
CSA,NOM,UL
Temperature Rating
158 degrees F
Type
OM3

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Opti-Core®

General Product Info

12-Digit UPC
074983820863
Cable Color
Aqua
Color
Aqua
Environment
Indoor
Product UPC
07498382086
Weight
0.1800 lb

Dimensions

Cable Length
3 m
Length
9.84 Inch
Outer Diameter
0.12 in
Outside Diameter
NA
Overall Length
9.84 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: Meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-3 (FOCIS-3), TIA-604-10 (FOCIS-10)
Prop 65
  • No
