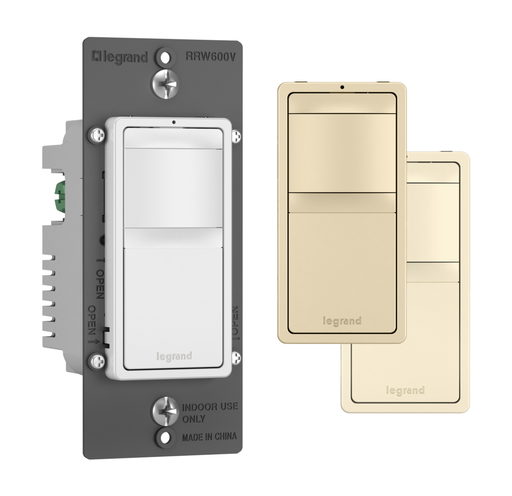

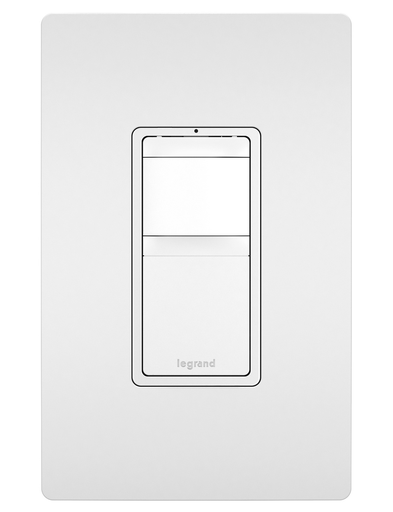

Pass & Seymour RRW600VTC Radiant 3-Wire Occupancy Sensor, 120V 600W - Tri-Color

Manufacturer: Legrand Pass & Seymour | Catalog # RRW600VTC | Codale Part # 4147607
$63.80/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Never worry about leaving the lights on, with the radiant® Vacancy Sensor. It automatically shuts off when a room is empty, and includes an adjustable delay setting of up to 30 minutes to match your needs. Designed for ease and style, it features a built-in locator light, and the sleek, clean lines of radiant® for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
15 Amp
Applications
Residential
Enclosure
Polycarbonate
Indicator
LED
Indoor Outdoor
Indoor
Lens Type
LED
Load Rating

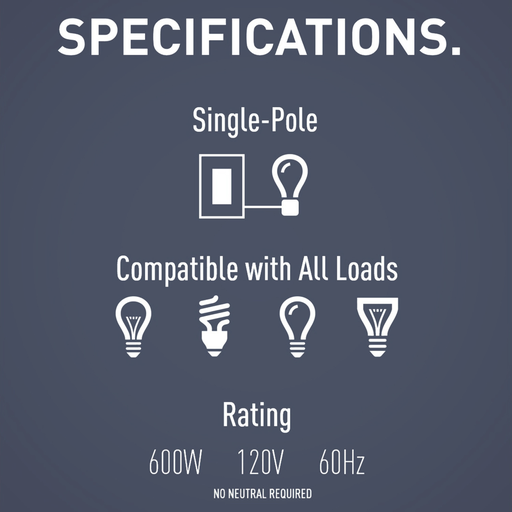

120V 600W (Halogen), 120V 5A (ELV), 120V 600VA (Fluorescent), 120V 5A 600W (LED), 120V 600W (Incandescent), 120V 600VA (MLV), 120V 5A 600W (CFL)
Material
Polycarbonate
Mounting Type
Wall
Number of Poles
1 Pole
Operating Temperature
0 to 55 degrees C
Sensing Range
600 ft
Sensor Type
PIR
Standard
CSA C22.2 No. 85,UL E23018,cULus
Switch Type
Motion Sensor
Temperature Rating
0 - 55 degrees C
Type
Single Pole Vacancy Sensor
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007496604
Color
White
Environmental Conditions
Indoor Use Only
Finish
Matte
Product UPC
78500749660

Dimensions

Depth
1.88 Inch
Height
2.63 Inch
Width
1.69 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features

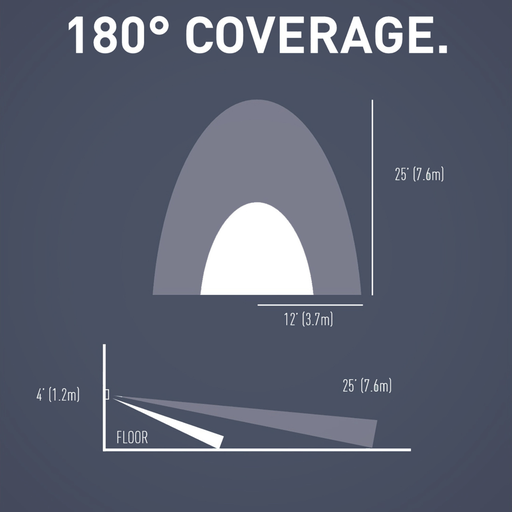

  • Passive infrared (PIR) sensor switch technology with 180° coverage up to 600 sq. ft. Rated for up to 600W (5A) of LED lighting.
  • Works with virtually any bulb/fixture, including: LED, incandescent, fluorescent, compact fluorescent (CFL), magnetic low-voltage (MLV) and electronic low-voltage (ELV), 1/6 hp.
  • Turn the light on when you enter, and let it turn itself off automatically after you leave for true convenience. Perfect for bathrooms, hallways, closets, garages, and more.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • Features an adjustable time delay to off after no motion is detected. Delay settings range from 30 seconds to 20 minutes after the room is vacated (default 20 minute delay).
  • Manual ON/Auto OFF functionality. Meets California Title 24 requirements for automatic off lighting control.
  • Replace any basic light or fan switch in 15 minutes or less. Supports single pole and multi-location installs. No neutral required.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
Certifications
  • UL Listed
  • cULus Listed
