ALLIED AMHMI120L 12X10 HMI CVR KIT

Manufacturer: Allied Moulded Products | Catalog # AMHMI120L | Codale Part # 4148299
$152.59/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet MDM Safety Data Sheet

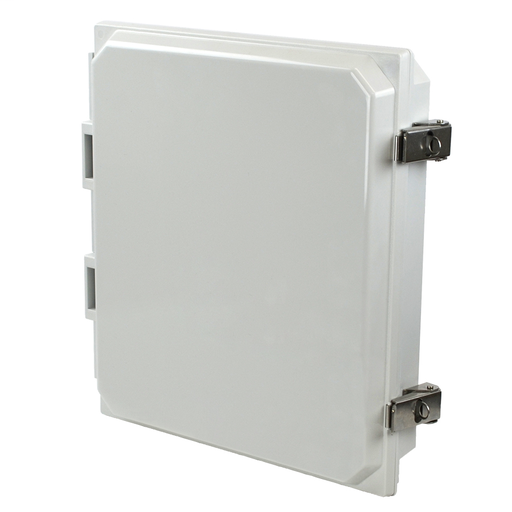

HMI cover kit used to cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform maintenance, decreasing arc flash risks and safety hazards. Size: 11.93" x 10.15" x .96", Mounting: 8 Screws, Cover Type: RAL 7035 light gray polycarbonate with hinged snap latching.

Technical Information

Applications
Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform maintenance, decreasing arc flash risks and safety hazards.
Insulation Type
Nonconductive Nonmetallic
Material
Polycarbonate
Mounting Type
8 Screws
NEMA
4X
Size
11.93" x 10.15" x .96"
Standard
UL 508A
Type
HMI cover kit

Manufacturer Information

Brand
Allied Moulded Products, Inc.

General Product Info

12-Digit UPC
085339991892
Color
RAL 7035 light gray frame and cover
Construction
Injection molded
Finish
Injection mold nonmetallic gloss
Product UPC
08533999189
Shape
Rectangle

Dimensions

Depth
0.96 Inch
Height
11.93 Inch
Width
10.15 in

Certifications and Compliance

Buy American Compliant
Y
  • Non-corrosive, non-conductive, light weight with lower installation cost and longer life cycle cost compared to steel. Rigid design with a gasket system encased in a continuous channel on the cover and frame. Open back frame design with an opening size of 10.47\" x 8.69\" and is a UL recognized component for use with NEMA 4X enclosures.
  • Cover and protect electrical and electronic controls including HMI (Human Machine Interface) instruments, touch pad controllers and pushbuttons mounted on the surface of NEMA 4X enclosures. No need to open the enclosure to view electronics or perform maintenance, decreasing arc flash risks and safety hazards.
Additional Materials
  • Polyurethane (FIP) Formed-In-Place gasket system
  • 316 stainless steel external hardware
  • UL® listed and recognized component for use with CSA® listed enclosure products Types 1, 2, 3, 3R, 4, 4X, 12 and 13.
  • Complies With:
  • Meets Requirements: ANSI/UL50, ANSI/UL50E, and ANSI/UL508A; File No. E487574
  • 1. EN / IEC 60204-1 and 60529 Type IP66
  • 2. RoHS directive
