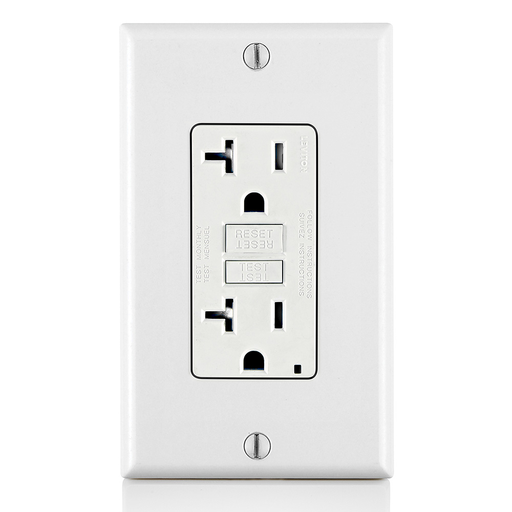

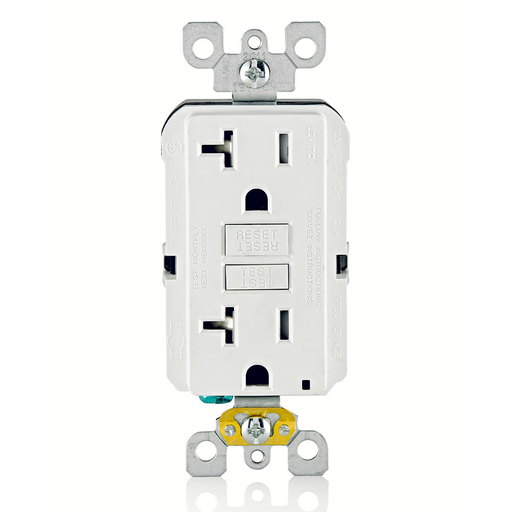

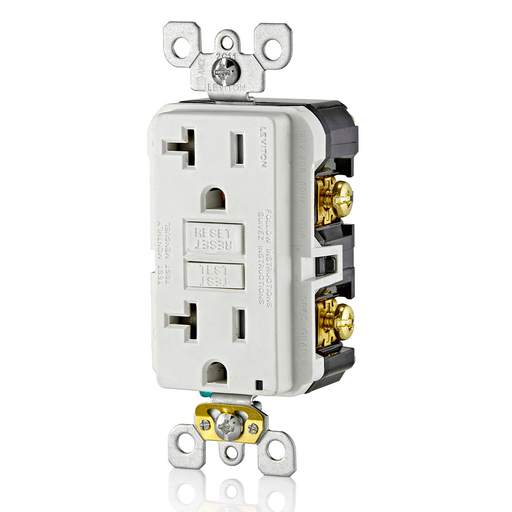

LEV GFTR2-W WH ST TR GFCI 20A125V

Manufacturer: Leviton | Catalog # GFTR2-W | Codale Part # 4148625
$37.12/ea
ea
Log in or register to view your price, purchase history, and more!
936 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro Slim GFCI, Monochromatic, Residential/Commercial applications, back and side wired, nylon wallplate/faceplate, screws and self grounding clip included - White

Technical Information

Amperage
20 Amp
Body Material
Polycarbonate,Polycarbonate,Polycarbonate
Dielectric
1250 V
Face Material
Thermoplastic,Thermoplastic,Thermoplastic
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial,Residential
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Flush
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
66 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA,CSA,UL,UL
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Tamper-Resistant, Slim
Voltage
125 Volt
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT GFI RECEPTAC

General Product Info

12-Digit UPC
078477497364
Color
White
Finish
Matte
Product UPC
07847749736
Weight
0.3600 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Patents
  • CA2621644
  • CA2624409
  • CA2677283
  • CA2730014
  • MX302458
  • MX308495
  • MX344697
  • US10483066
  • US11349293
  • US11456138
  • US11831139
  • US7355117
  • US7697252
  • US7820909
  • US7868719
  • US8242362
  • US8587914
  • US8599522
  • US8944859
  • US9053886
  • US9276393
Features
  • Provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted
  • On initial power up, tests the GFCI within 3 seconds
  • Auto-monitoring exceeds the UL requirement
  • Auto adapts and shifts to more frequent testing if potential problem is detected

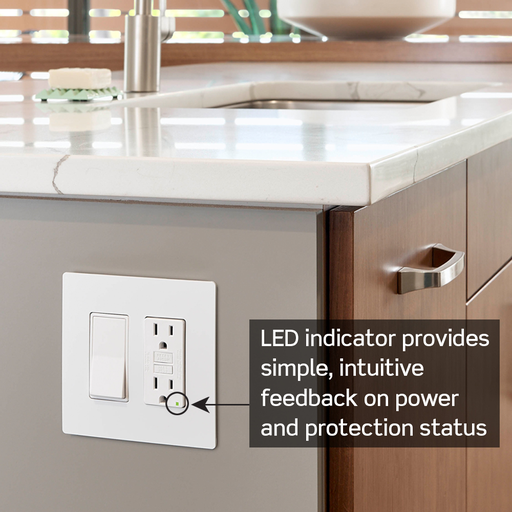

  • Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
  • Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
  • Electronics are designed to minimize any false triggers
  • Reduced depth makes it easier to install in any electrical box, even shallow ones
  • Terminals allow for easy wiring options back and side wire capable
  • External back wire clamps provide visual indication of proper wire seating
  • Withstands high torque and resists wire pullout
  • Standard brass self-grounding clip
  • Trip threshold meets or exceeds UL requirements for tripping time
  • Improved immunity to high-frequency noise reduces nuisance tripping
  • Advanced electronics design provides superior resistance to electrical surges and over-voltages
  • Compatible with all Decora devices and wallplates; available in select Decora colors
  • UL Fed Spec WC-596 rated
  • SAFE - Delivers continuous ground fault protection
  • SELF TESTING - Automatically self-tests to ensure it can respond to ground fault
  • SIMPLE - Status indicator light provides simple, intuitive feedback
  • Now available in bulk pack - white color only
Color Variations
  • Brown
NEMA
  • 5-20R
