Hubbell GFTWRST20SNAPR20A COMM SELF TEST TRWR SNAP GFR RED

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFTWRST20SNAPR | Codale Part # 4149097
$40.51/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

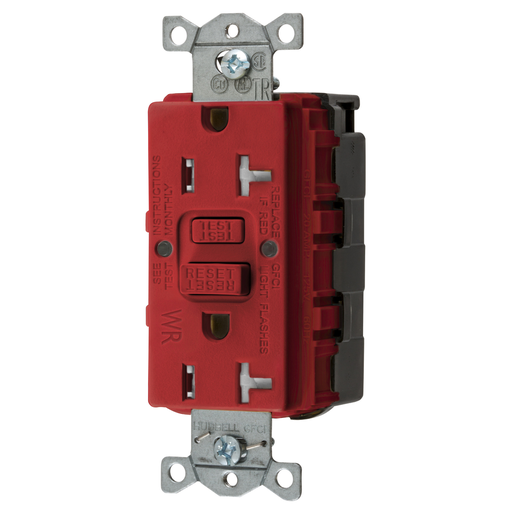

Straght Blade Devices, SNAP-Connect, Weather and Tamper-Resistant, AUTOGUARD, Self Test, GFCI Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Red

Technical Information

Amperage
20 Amp
Applications
Commercial Grade
Conductor Size
14-12 AWG
Current
20 Amp
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard
Standard
CSA,NOM,UL
Style
Standard
Tc Connection
Spade, 2 Terminals
Type
Decorator, Tamper and Weather Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 in

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SnapConnect®

General Product Info

12-Digit UPC
883778860171
Color
Red
Environmental Conditions
Weather Resistant
Product Series
Heavy Duty
Product UPC
88377886017
Weight
0.4000 lb

Dimensions

Height
1.47 Inch
Length
3.28 Inch
Width
1.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Audible SNAP, indicates solid connection
  • Patented shutter design for tamper-resistant protection
  • Meets NEC requirements for TR (517-18c) and WR (406.9), UV and corrosion resistance for harsh and damp applications
  • Patented AUTOGUARD® self test technology
  • Protects against line and load reversal, no power to the face or downstream if device is miswired
  • SNAPConnect®, Self Grounding, Weather and Tamper Resistant, AUTOGUARD Self test Technology
