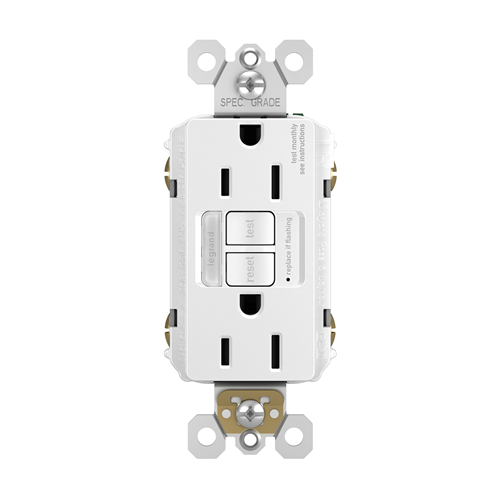

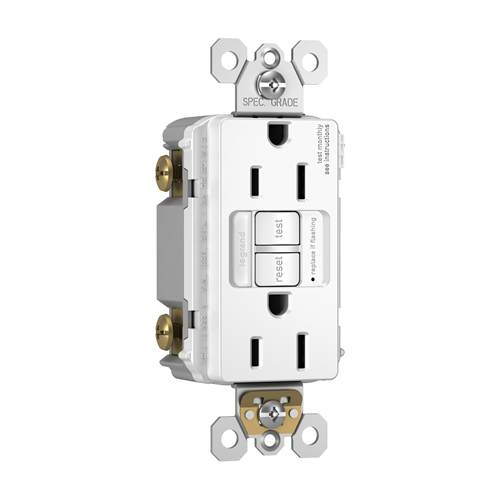

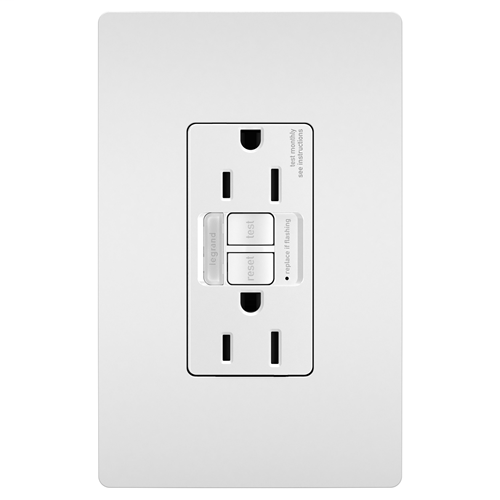

Product image for Pass & Seymour 1597-NTLTRWCC4 15A 125V Self Test Tamper Resistant GFCI With Nightlight, White
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Pass & Seymour 1597-NTLTRWCC4 15A 125V Self Test Tamper Resistant GFCI With Nightlight, White

Manufacturer: Legrand Pass & Seymour | Catalog # 1597-NTLTRWCC4 | Codale Part # 4149893
*Call For Price*
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.

Technical Information

Amperage
15 Amp
NEMA
5-15R
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007049589
Color
White
Product UPC
78500704958
Features & Benefits
  • Two receptacles.
  • Meets 2015 UL requirements.
  • Supply Voltage Range: 102-132 VAC
  • Supplied with matching TP wall plate (except 1597NTLTRNICC4, 1597NTLTRABCC4 and 1597NTLTRDBCC4).
  • Night light uses cooler LED illumination.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Meets National Electrical Code® Tamper-Resistant requirements.
  • Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • Sealed night light with high-impact-resistant Lexan® lens prevents tampering.
  • Trip Threshold: 5 +/- 1 m
  • Photocell turns night light ON in dark, OFF in daylight.
  • Two back-wire holes per terminal.
  • LED rated at 186 milliwatts at 120V.
  • High-impact-resistant thermoplastic construction.
  • Class A rated GFCI.
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles.
  • FSUL Listed (Federal Specification WC596).
  • Ground screw has back-wire clamp for easy installation.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • Supply Voltage: 125VAC, 60 Hz
  • Extra-long strap.
  • Dual-direction test and reset buttons.
  • Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
  • 20 Amp feed-thru capacity
  • 10kA short circuit rating.
  • Trip indicator light (red LED).
  • Button colors match the device face.
  • Auto-Ground clip assures a positive ground to metal box.
  • Exceeds UL 943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Energy-efficient LED has average 20=year life expectancy, eliminating bulb replacement.
  • Trip Time: 0.025 sec., nominal per UL Standard
  • Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box.
Available Options
  • Combination Tamper-Resistant 15A Self-Test Night Light/GFCI, Nickel
  • Combination Tamper-Resistant 15A Self-Test Night Light/GFCI, Light Almond
  • Combination Tamper-Resistant 15A Self-Test Night Light/GFCI, Antique Brass
  • Combination Tamper-Resistant 15A Self-Test Night Light/GFCI, Dark Bronze
  • Combination Tamper-Resistant 15A Self-Test Night Light/GFCI, Black
  • Combination Tamper-Resistant 15A Self-Test Night Light/GFCI, Ivory
