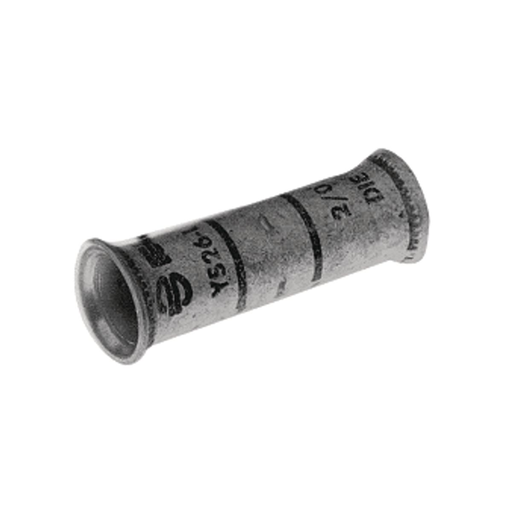

BUR YSV26FXB BELLED SPLICE 2/0 FLEX

Manufacturer: Hubbell-Burndy | Catalog # YSV26FXB | Codale Part # 4150571
$29.86/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Hylink-Splice-Belled Long Barrel, 2/0 Str. (325/24) 2/0 AWG, 3.44 in L, UL Listed 90 Deg C,600 Volts to 35 kV.

Technical Information

Applications
For Higher voltage applications
Color Coding
Black
Conductor Size
1 AWG
Connection Type
Splice
Material
Copper
Plated?
Yes
Plating Type
Tin - Electro Plated Tin
Size
3.44 IN Length X 1.63 IN Dimension B
Temperature Rating
90 C
Type
Splice
Voltage
35,000 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810041482
Color
Black,Black,Green
Product UPC
78181004148
Weight
0.1400 lb

Dimensions

Height
0.63 Inch
Length
3.18 Inch
Overall Length
87 mm
Width
0.63 in

Certifications and Compliance

Country of Origin
USA
Features
  • Long Barrel Length: High Voltage Terminations, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Greater Mechanical And Electrical Properties, Belled Cable Entry: A Funnel Type Entry Provide Easy Insertion Of Extra Flexible Cables Plus Offers Mechanical Strain Relief For Individual Strands, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Color Code: Black, Oil Stop: No, Tapered End: No, Die Index: 13 Element A, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U26RT Die, (4), Y46 Tool, U26RT Die With PUADP-1 Adapter, (4), Wire Strip Length: 1-11/16 IN, Conductor Type: Flexible Copper
