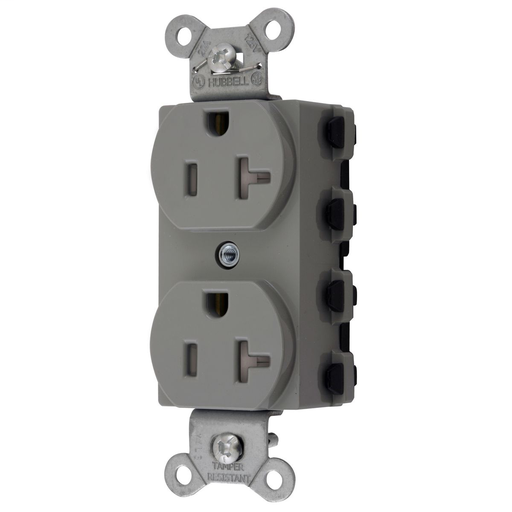

Hubbell SNAP5362GYTRA S-CONNECT DUP 20A/125V TR GY

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP5362GYTRA | Codale Part # 4150935
$7.76/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, SNAPConnect, Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, Gray, USA

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Specification Grade
Conductor Size
12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Conductors
3
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
3.28 in x 1.64 in x 1.1 in
Style
Smooth Face
Tc Connection
Terminal Screws
Type
Non-Reversing
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585552941
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Extra Heavy Duty
Product UPC
78358555294
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.64 in

Certifications and Compliance

Country of Origin
USA
Performance
  • Electrical - Current Interrupting - Receptacle certified for current interrupting at full rated current with equivalently rated NEMA® plug
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (without impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
Features
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Quick Connect- SNAPConnect, Tamper-Resistant, USA Product
  • Fully insulated design
Industry Standard(s)
  • Certified to CSA, C22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
