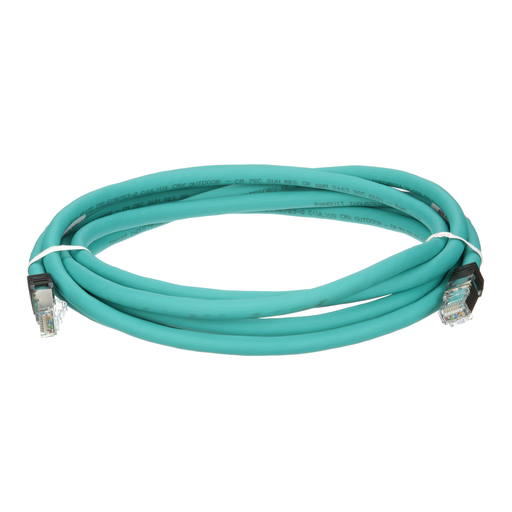

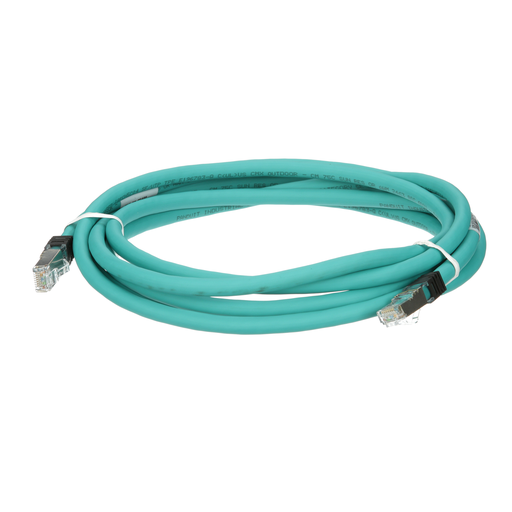

Panduit ISTPHCH3MTL Industrial Cat 5e Shielded 600 V Patch Cord, 3m

Manufacturer: Panduit | Catalog # ISTPHCH3MTL | Codale Part # 4152012
$141.95/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
The IndustrialNet™ Cat 5e Shielded Patch Cord is constructed of industrial grade, 24 AWG, SF/UTP, twisted pair, stranded, CM cable with industrial bulkhead shielded modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 3 meters in length and teal.

Technical Information

Applications
For 10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), Industrial Ethernet, Ethernet/IP, Control Panel Deployments Featuring Power Source Voltages, Uplinks Featuring Gigabit Data Transmission from the Control Pin
Cable Type
24 AWG SF/UTP
Conductor Size
24 AWG
Conductor Type
Stranded
IP Rating
IP20
Material
Copper
Max Operating Temperature
70 degrees C
Min Operating Temperature
-20 degrees C
Performance Level
Category 5e
Plug Type
Modular Plug
Type
Category 6A
Wire Size
24 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
IndustrialNet™

General Product Info

12-Digit UPC
074983848683
Color
Teal
Jacket Material
Thermoplastic Elastomer
Product UPC
07498384868
Weight
0.4800 lb

Dimensions

Length
9.84 Foot
Outer Diameter
7.1 mm
Outside Diameter
7.1 mm
Overall Length
3 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D standards at swept frequencies up to 100MHz; Meets ODVA Ethernet/IP electrical and mechanical performance requirements; Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7, UL 1863; Rated IP20; Meets IEEE 802.3af and IEEE 802.3at for PoE applications; UL AWM Style 2463; RoHS Compliant
