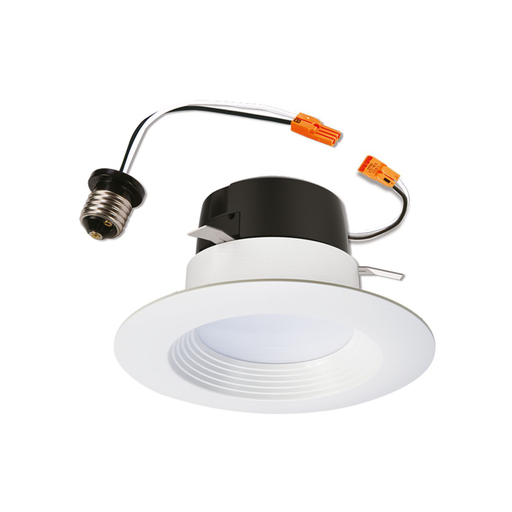

Halo LT460WH6930R 4" LED Retrofit Baffle Trim Module, 120V, 90CRI, 3000K, White

Manufacturer: Cooper Lighting Solutions | Catalog # LT460WH6930R | Codale Part # 4152144
$16.56/ea
ea
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
The Halo® LT4 combines the energy savings, long life and sustainability of LED in an easy to install retrofit baffle trim kit. Friction blades hold the trim tight to ceiling; use in new construction, remodeler and retrofit installation in Halo® and other compatible 4" recessed housings. The diffuse lens provides shielding to the source and wet location listing; suitable for use in showers or in outdoor covered ceiling applications. Also conforms with NFPA requirements for closet use. Integral driver provides 120 volt phase cut dimming, an inline connector provides power using a medium base socket adapter provided or connect directly to the mating connector in the LED housings. Ships with a gasket and makes any housing airtight for added energy savings and code compliance.

Technical Information

Amperage
0.067 at 120V
Applications
Lighting
Color Temperature
3000 K
Correlated Color Temp
3,000 K
Lamp Type
LED
Lumens
554 Lumen
Mounting Type
Recessed
Type
4" LT4 LED Retrofit Trim Kit
Voltage
120 Volt
Wattage
8 Watt

Manufacturer Information

Brand
Halo
Sub Brand
Market Pro

General Product Info

12-Digit UPC
080083746163
Product UPC
08008374616
Weight
0.4 lb

Dimensions

Diameter
4 Inch
Height
5.6 Inch
Length
2-1/4 Inch
Width
5.6 in

Certifications and Compliance

ARRA Compliant
No
Country of Origin
China
Features
  • 2.25 IN Length 5.6 IN Width 5.6 IN Height
  • LED retrofit shallow lens downlight with baffle trim
  • Retrofits existing 4\" housings with screwbase adapter included
  • For use with 4\" HALO and other new construction and remodel housings
  • 5 color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K CCT, CRI: 90
  • Dead Front, non-conductive constrution, L70 at 35,000 hours
  • Friction springs holds trim securely to ceiling
  • 120V, Phase dimming down to 10%, Lumens: up to 665, Up to 76 lm/W
  • Damp and wet location listed for showers and protected ceilings
  • Meets NFPA requirements for use in closets, AIR-TITE™
