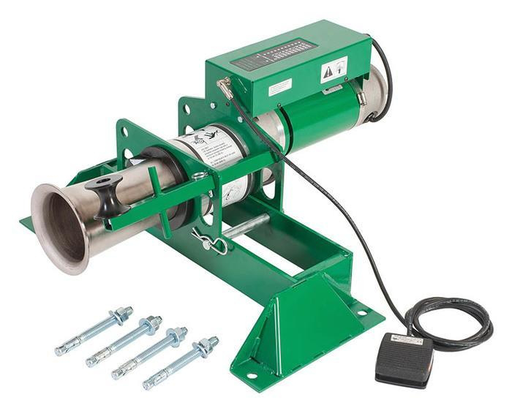

Greenlee 6900 UT10 PACKAGE W/FLOOR MOUNT

Manufacturer: Greenlee | Catalog # 6900 | Codale Part # 4152864

$14,625.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
UT10 package with floor mount. 2 Speed Ultra Tugger (UT10-2S) is a one-stop-shop: The only 2 speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch. Use for cable pulls requiring high as well as low pulling loads. The no-load high speed is 16 ft/min and is best suited for loads up to 4000 lb where the speed will be 12 ft/min. The no-load low speed is 9 ft/min and can be used on loads up to 8000 lb where the speed will be 6 ft/min or a momentary peak capacity of 10000 lb. 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 lb) range. Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 lb. Easy control features for increased productivity: On-board force gauge provides visual communication of pulling force and speed changes. Quick speed change from high speed to low-speed by simply double tapping foot pedal. Removable foot pedal for convenience. Sets up in less than 2 minutes and can be used in every pulling situation. This combination of speed and versatility can increase your productivity, equaling more pulls in a day and delivering greater benefit to your bottom line.

Technical Information

Amperage
20 Amp
Applications
For Cable Pulls Requiring High as Well as Low Pulling Loads
Cable Type
Electrical Cable
Load Rating
32000 lb
Power Rating
1-1/2 hp
Type
Heavy Duty
Voltage
120 Volt

Manufacturer Information

Brand
Greenlee
Sub Brand
Ultra Tugger

General Product Info

12-Digit UPC
783310003571
Product UPC
78331000357
Weight
176.0000 lb

Certifications and Compliance

Country of Origin
USA
Features
  • 2 Speed Ultra Tugger (UT10-2S) is a one-stop-shop - The only 2 speed puller on the market that can shift from high speed/low load pulling to low speed/high load pulling with a simple double tap motion on the foot pedal control switch
  • Use for cable pulls requiring high as well as low pulling loads
  • The no-load high speed is 16 FT/MINT and is best suited for loads up to 4000 LB where the speed will be 12 FT/MINT
  • The no-load low speed is 9 FT/MINT and can be used on loads up to 8000 LB where the speed will be 6 FT/MINT, or a momentary peak capacity of 10000LB
  • 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range
  • Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB
  • Easy control features for increased productivity - On-board force gauge provides visual communication of pulling force and speed changes
Application
  • Electrical Cable pull
