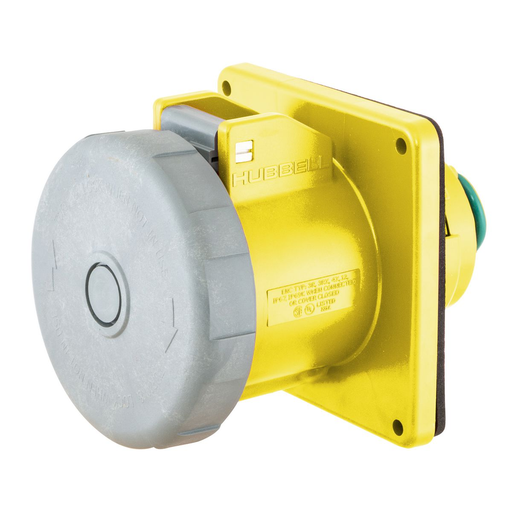

Product image for Hubbell HBL360R4W 60 Amp 125 Volt 2-Pole 3-Wire Watertight IEC Pin and Sleeve Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Hubbell HBL360R4W 60 Amp 125 Volt 2-Pole 3-Wire Watertight IEC Pin and Sleeve Receptacle

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL360R4W | Codale Part # 4153632
$686.18/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 60A 125V AC, 2-Pole 3- Wire Grounding, Terminal Screws, Yellow, Watertight

Technical Information

Amperage
60 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
8-2 AWG
Current
60 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
Standard UL1682
Style
Standard Service
Tc Connection
Pressure Plate
Type
Watertight
Voltage
125 Volt
Wattage
7500 Watt
Wire Count
3
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585403854
Color
Yellow
Environmental Conditions
Watertight
Product Series
HBL Heavy Duty
Product UPC
78358540385
Weight
2.3 lb

Dimensions

Height
4.62 Inch
Length
6 Inch
Width
5.6 in

Certifications and Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
Puerto Rico
Features
  • Self-closing gasketed cover
  • Color coded housings for easy identification
  • Super tough insulated non-metallic housing
  • Watertight
