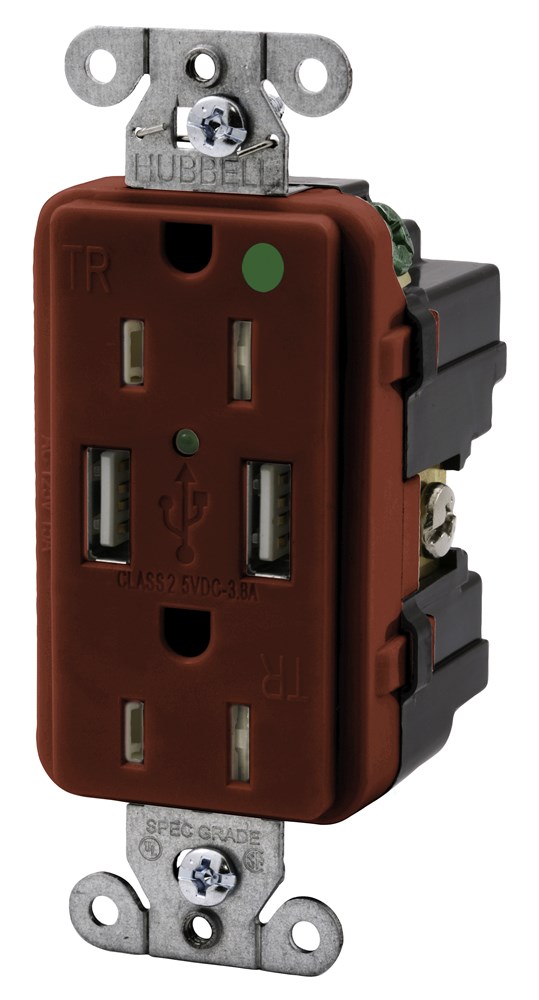

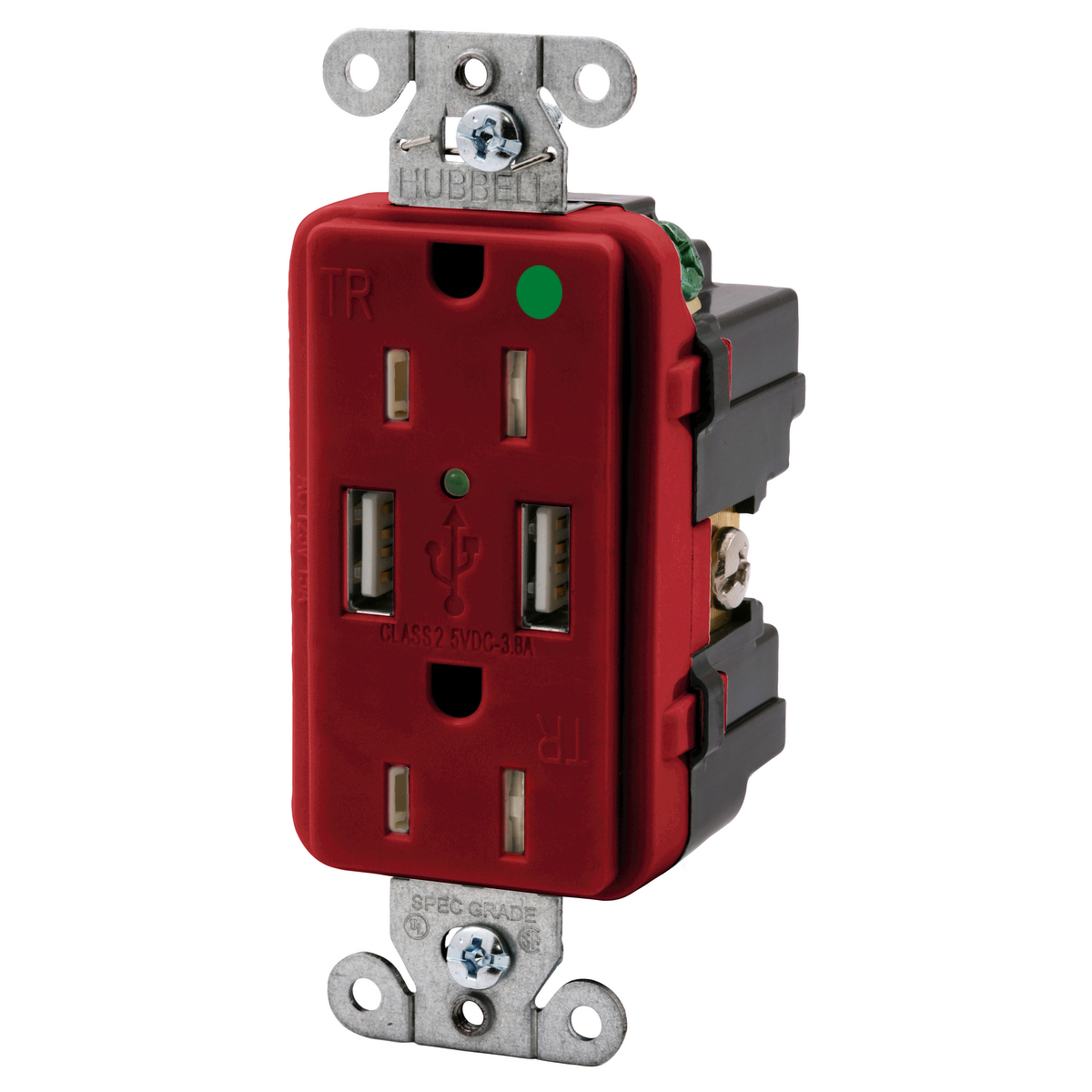

Product image for HCI USB8200R RECEP, DUP, HG, 15A 12
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HCI USB8200R RECEP, DUP, HG, 15A 12

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # USB8200R | Codale Part # 4153855
$60.58/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Straight Blade Devices, Decorator Duplex Receptacle, Two 3.8 Amp 5V Type 2.0 USB Ports (DC), Hospital Grade, 15A 125V, 2-Pole 3- Wire Grounding, 5-15R, Red

Technical Information

Amperage
15 Amp
Applications
Hospital Grade
Base Material
RTP,RTP
Conductor Size
14-10 AWG
Contact Material
Brass
Face Material
RTP
Flamability Class
UL 94V-2
Grade
Hospital
Material
Nylon
Mounting Type
Recessed/Flush
Number of Poles
2 Pole
Number of Wires
3 Wire
Outlet Type
Tamper Resistant
Screw Material
Plated Steel
Size
Standard Sized Product
Tamper Resistant?
Yes
Tc Connection
Back and Side Wired Screw Terminals
Type
Decorator, 2-Port, USB Type A
Voltage
2,000 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
883778304989
Color
Red
Product UPC
88377830498
Used With
USB 1.1/2/3 Devices, Including Apple Products
Weight
0.3500 lb
Listings
  • cULus listed to UL498 and UL1310 Hospital Grade
  • NEMA® WD-6 Compliant
Features
  • Two USB ports 3.8 Amp, 5V DC, type A, class 2.0
  • Tamper-Resistant decorator duplex receptacle
  • Green LED indicator to show USB power available
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
