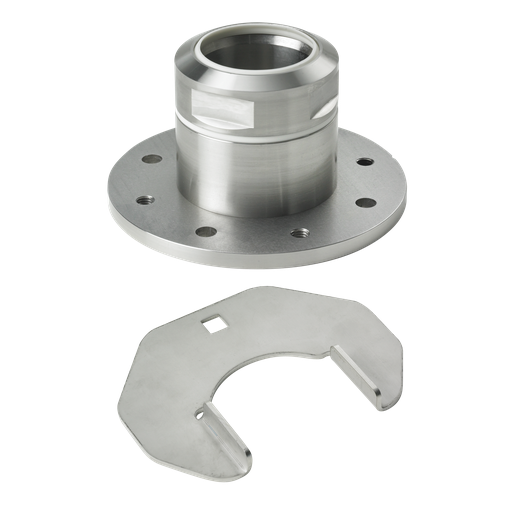

Product image for Hoffman SFBBSS Syspend Sanitary HMI Fixed Base Bracket, SS Type 304
Image thumbnail 0
Image thumbnail 1
Email

Hoffman SFBBSS Syspend Sanitary HMI Fixed Base Bracket, SS Type 304

Manufacturer: nVent Hoffman | Catalog # SFBBSS | Codale Part # 4156656
$1,143.76/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Syspend Sanitary HMI Fixed Base Bracket provides a means of attaching a tube to a wall, floor or machine. Syspend-Lok attachment method prevents tubes from turning and pulling out of fittings and provides a water-tight connection.

Technical Information

Applications
Corrosive Environments; Hygienic Environments; Controls and Drives
Material
Stainless Steel
Type
Syspend Sanitary HMI Stainless Steel

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Syspend

General Product Info

12-Digit UPC
783510193478
Color
Unpainted
Finish
Polished
Product UPC
78351019347
Weight
7.7 lb

Dimensions

Depth
6-1/2 Inch
Height
3.53 Inch
Length
7-1/2 Inch
Thickness
0.45 in
Width
6.5 in
Features
  • Type 304 polished stainless steel
  • Includes 4 set screws that provide means of leveling the entire suspension system
  • Surface mounting fasteners are not provided
  • Optional Base Bracket Cover available to cover all exposed mounting hardware
  • Syspend-Lok Wrench Head for attaching base bracket to tubes is included
  • Strap wrench or spanner wrench that opens to 80 mm or greater can also be used
  • Assembled Syspend Sanitary HMI Arm System has a max weight load of 90 lb. (40.8 kg)
