Hubbell HBL2766 Locking Flanged-Receptacle, 30A 3PH 277/480V, L19-30R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2766 | Codale Part # 4158340
$230.51/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 30A 3-Phase Wye 277/480V AC, 4-Pole 4-Wire Non- Grounding, L19-20R, Screw Terminal, White

Technical Information

Amperage
30 Amp
Applications
Insulgrip
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Horsepower
5 hp
Material
Thermoplastic
Mounting Type
Flush/Recessed/Screw
NEMA
L19-30R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Flanged Single
Voltage
277/480 Volt
Wattage
14400 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585039503
Color
White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358503950
Weight
0.35 lb

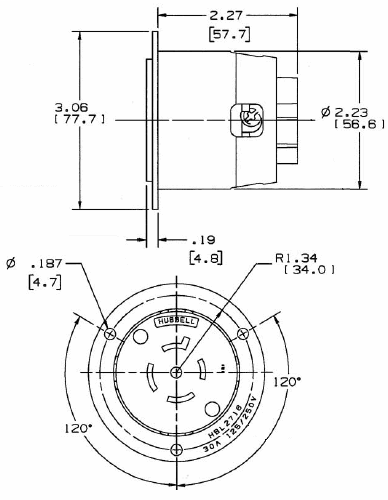

Dimensions

Height
2.27 Inch
Length
3.06 Inch
Width
3.06 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
