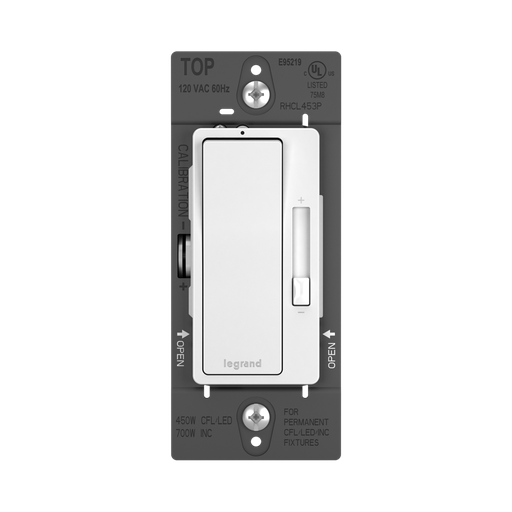

Pass & Seymour RHCL453PW Radiant CFL/FED Single Pole/3-Way Dimmer, 450W 120V - White

Manufacturer: Legrand Pass & Seymour | Catalog # RHCL453PW | Codale Part # 4158586
$91.83/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Upgrade your space with precise dimming control and exceptional style, with this dimmer designed for use with most compact fluorescent and LED dimmable bulbs (not for use with 0-10V options). Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
15 Amp
Applications
For LED Retrofit, Incandescent, CFL Lighting Control, Residential Applications
Bulb Compatibility
CFL,Incandescent,LED
Connection Type
Screw Terminal
Enclosure
Thermoplastic
Frequency
120 Hz
Material
Thermoplastic
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
1 Pole
Number of Switches
1
Operating Temperature
0 - 40 degrees C
Power Rating
450 W, 700 W Incandescent
Switch Type
Paddle
Tc Connection
Screw Terminals
Type
3 Way, Slide Handle, Paddle, Multi-Location, Phase Cut-Off
Voltage
120 Volt
Wattage
700 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
The Radiant®

General Product Info

12-Digit UPC
785007053371
Color
White
Environmental Conditions
< 95% RH Non-Condensing
Finish
Matte
Product UPC
78500705337

Dimensions

Depth
1-1/4 Inch
Height
4-1/4 Inch
Warranty Length
Limited Lifetime
Width
1.75 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Features

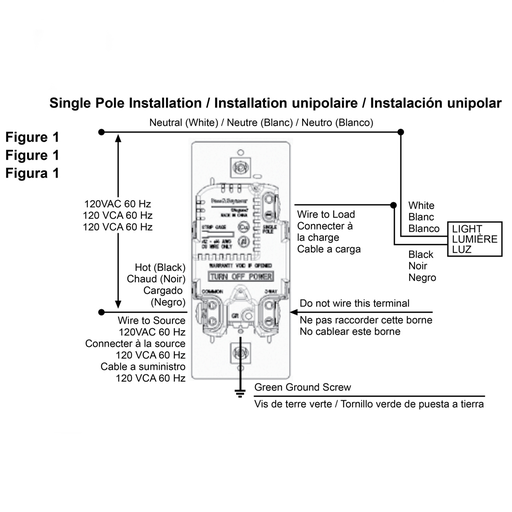

  • Replaces any basic switch or dimmer with ease, in both single-pole and 3-way applications. Rated for use with the following dimmable bulb types: 450W LED,CFL, 700W Incandescent, or 120VAC, 60Hz

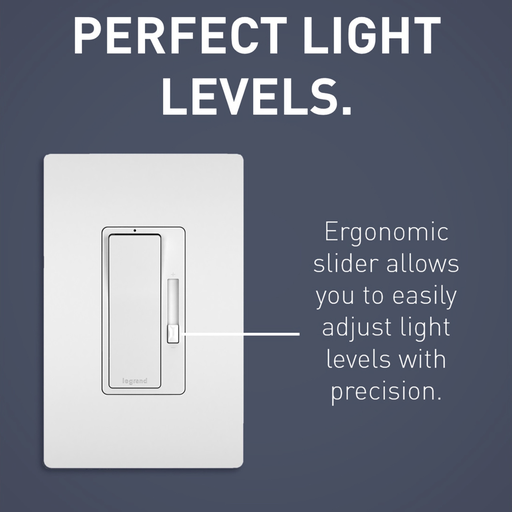

  • Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
  • Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
  • Constant memory features returns lights to their previous level after a power failure or outage.
  • Adjustment dial allows users to adjust the bottom of the dimming range for a broad selection of CFL and LED bulbs.
  • No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
  • Features durable, high-impact resistant thermoplastic construction.
  • More color options available to fit any style, including finishes to match current hardware and lighting trends.
  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Certifications
  • UL Listed
  • cULus Listed
