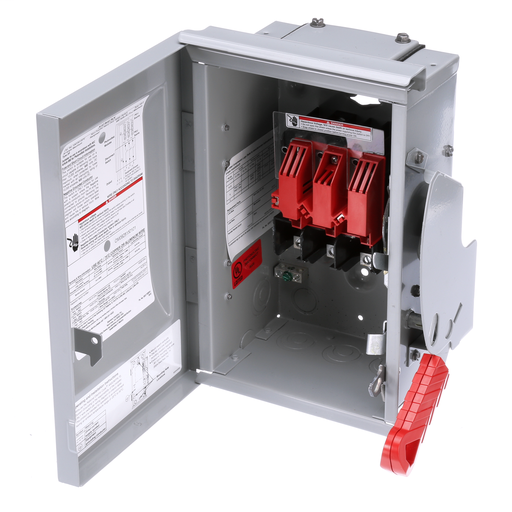

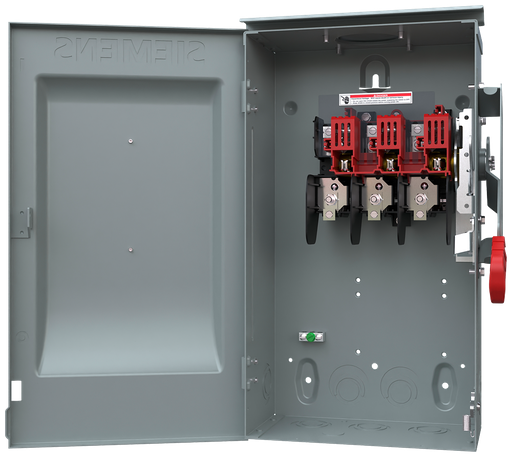

Siemens HNF361RPV 600 VDC 30 Amp 3-Pole 3-Wire NEMA 3R Heavy Duty Non-Fusible Safety Switch

Manufacturer: Siemens | Catalog # HNF361RPV | Codale Part # 4159015
$437.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole 3-Wire and negative ground Non-Fused in a type 3R enclosure (outdoor). Rated 600VAC (30A). Special features: photovoltaic rated, 10000 AIC disconnect.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 C
Amperage
30 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Enclosure
NEMA3R
Frequency
60 Hz
Insulated?
No
Material
Steel
Mounting Type
SURFACE
Number of Poles
3 Pole
Operating Cycles
10000
Operating Temperature
-29 degrees C
Tc Connection
MECHANICALLUGS
Type
HEAVYDUTYSWITCH
Voltage
600 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
662643545296
Product UPC
66264354529
Weight
11.975 lb

Dimensions

Height
7.9 Inch
Length
19.3 Inch
Width
17.300 in

Certifications and Compliance

Country of Origin
Mexico
