Product image for PAN NKA6XPPG24Y Cat 6A Punchdown An
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

PAN NKA6XPPG24Y Cat 6A Punchdown An

Manufacturer: PANDUIT | Catalog # NKA6XPPG24Y | Codale Part # 4160088
$899.70/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet

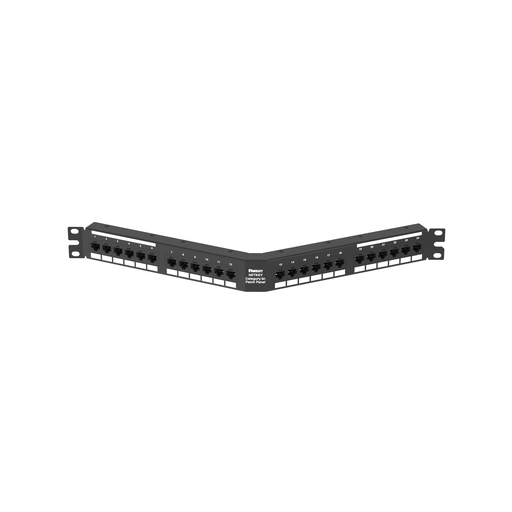

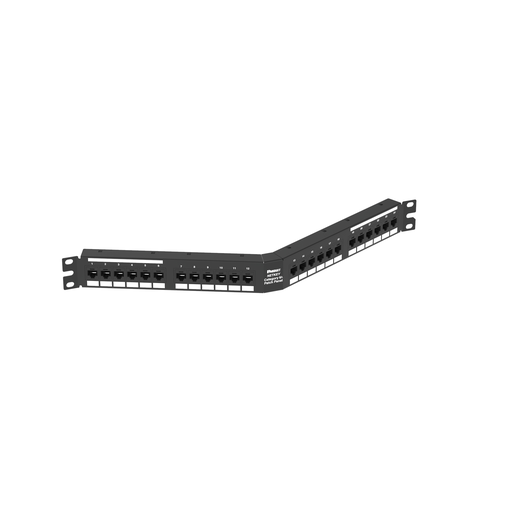

The NetKey® Cat 6A UTP Angled Punchdown Patch Panel terminates 4-pair, 22.26 AWG, twisted pair cable. These Cat 6A patch panels mount to 19 inch and 23 inch racks and incude 24 ports. Each module is 100% factory tested to exceed industry standard performance requirements, and are individually serialized for traceability. The angled design facilitates proper bend radius control and minimizes the need for horizontal cable managers. This punchdown patch panel is 1 RU, made of steel, and is black.

Technical Information

Applications
NA
Cable Type
Duplex
Fiber Type
OM4
Material
Steel
Max Operating Temperature
149 degrees F
Min Operating Temperature
-10 degrees C
Number of Ports
24
Performance Level
Category 6A
Plug Type
LC Connector - Keyed A (Black)
Type
Angled
Wire Size
1.6mm

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Opti-Core®

General Product Info

12-Digit UPC
074983068111
Color
Orange
Product UPC
07498306811
Used With
50/125 m Optical Fiber Cable
Weight
1.9900 lb

Dimensions

Depth
120.6 mm
Height
1.72 Inch
Length
120.6 mm
Overall Length
4.75 in
Width
482.6 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Prop 65
  • No
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA channel requirements at swept frequencies up to 500 MHz. Meets ANSI/TIA-568-C.2 and ISO 11801 Category 6A component requirements at swept frequencies up to 500 MHz,Complies with ANSI/TIA-1096A (formerly FCC Part 68); IEC 60603-7, Supports IEEE 02.3af/802.3at and proposed 802.3bt type 3 and type 4 PoE applications, UL 1863 and RoHS Compliant
