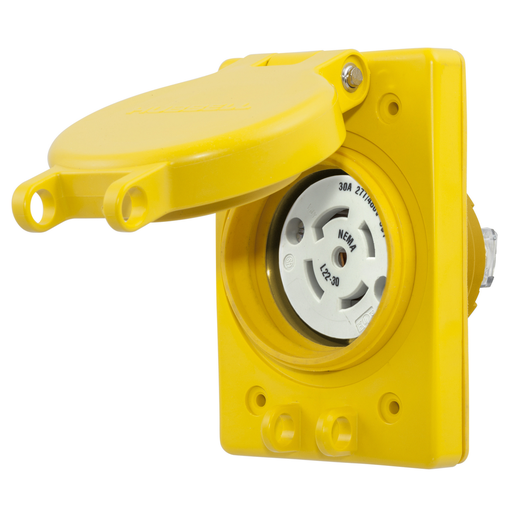

Hubbell HBL69W82 WATERTIGHT RECEP, 30A 277/480V, L22-30

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL69W82 | Codale Part # 4160658
$124.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 30A, 3 Phase WYE 277/480V AC, 4 Pole, 5 Wire, Thermoplastic elastomer, NEMA L22-30R, Yellow

Technical Information

Amperage
30 Amp
Applications
Commercial, Industrial
Conductor Size
18-8 AWG
Current
30 Amp
Material
Thermoplastic
NEMA
L22-30R
Number of Poles
4 Pole
Number of Wires
5 Wire
Size
4.56 in x 3.10 in x 2.92 in
Standard
ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Tc Connection
Screw, 6 Terminals
Type
Receptacle
Voltage
277/480 Volt
Wattage
14400 Watt
Wire Size
18-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585433325
Color
Black on Yellow
Environmental Conditions
Watertight
Product UPC
78358543332
Weight
0.3000 lb

Dimensions

Height
2.92 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
