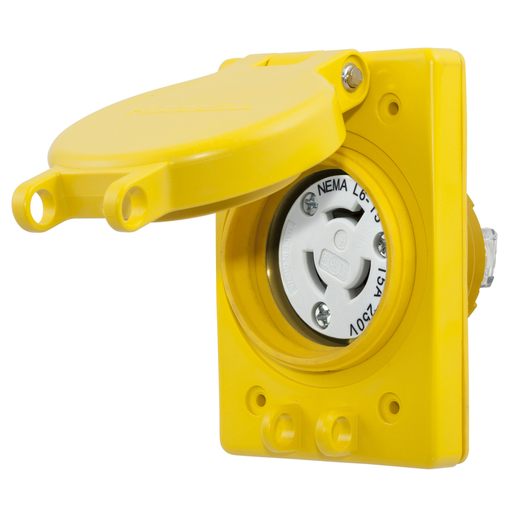

Hubbell HBL65W49 WATERTIGHT RECEP ASSY, NEMA L6-15R

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL65W49 | Codale Part # 4160985
$81.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Twist-Lock® Receptacle with Lift Cover, 15A, 250VAC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L6-15R, Yellow.

Technical Information

Amperage
15 Amp
Body Material
PBT
Conductor Size
18-8 AWG
Contact Material
Nickel Plated Brass
Current
15 Amp
Dielectric Strength
2500 VAC
Grade
Industrial
Material
PBT
Mounting Type
Flush
NEMA

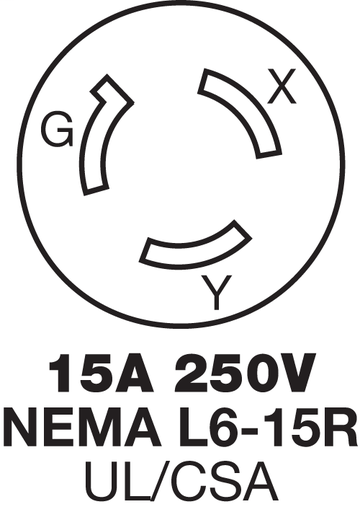

L6-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
4.56 in x 3.10 in x 2.66 in
Standard
ANSI Standards,IP69K In Use,Meets NEMA WD-1,WD-6
Temperature Rating
-40 to 60 degrees C Continuous
Type
Receptacle
Voltage
250 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585456621
Color
Yellow
Product UPC
78358545662
Weight
0.3000 lb

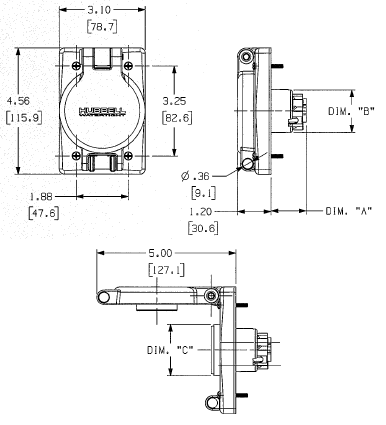

Dimensions

Height
2.66 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
  • Stainless steel hardware and corrosion-resistant connection points
