HWDK HBL26W49 PLUG, NEMA L7-20P, 20

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL26W49 | Codale Part # 4160987
$74.52/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Watertight Devices, Twist-Lock® Plug, 20A, 277V AC, 2 Pole, 3 Wire, Thermoplastic elastomer, NEMA L7-20P, Yellow

Technical Information

Amperage
20 Amp
Applications
Industrial and Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Cord Type
Portable
Current
20 Amp
Material
Elastomeric/Composite
Mounting Type
Cord
NEMA

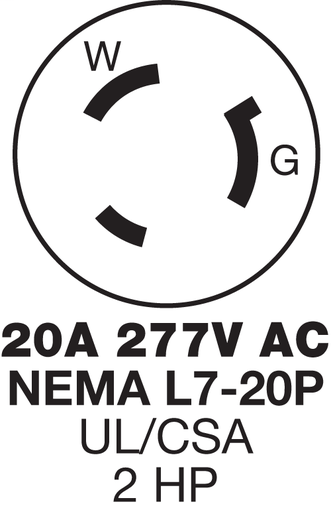

L7-20P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

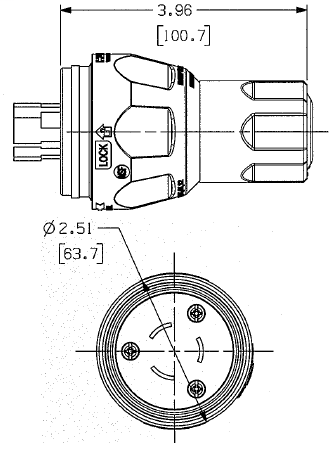

2.51 in x 2.51 in x 3.96 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Type
Standard Sized
Voltage
277 Volt
Wire Count
3
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131412
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358513141
Weight
0.2500 lb

Dimensions

Height
3.96 Inch
Length
2.51 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
